New IR LED's set new output benchmark

23/04/2021

CBM-90-IRD LEDs offer a practical alternative to lasers in life sciences and industrial markets, with three peak wavelength options in a compact footprint.

Luminus Devices has expanded its portfolio of ultra-high-power infrared (IR) LEDs with a new product line that addresses the rapid expansion of life sciences, medical, machine vision, and industrial applications. The Luminus CBM-90-IRD LEDs come in three peak wavelengths – 780nm, 850nm, and 940nm – and deliver unmatched radiometric power in a compact package platform that is well-suited for fiber-coupled applications.

Version PeakW (typ) Centroid W (typ) Typ Output 13,5A Typ Vf @13,5A FWHM (typ)
IRD-780 780nm 776nm 8-11 W 3,5V 30nm
IRD-850 855nm 850nm 13-15 W 3,7V 35nm
IRD-940 950nm 940nm 11-13 W 3,6V 45nm



Documents Tech question

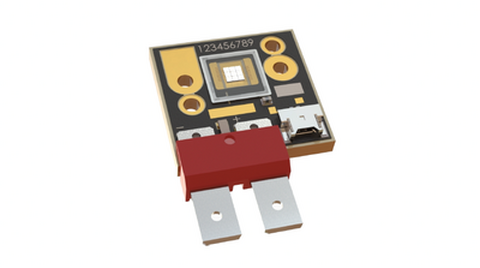

Luminus IR LE Ds 606e152a01a2d

New IR LED's set new output benchmark

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

CBM-90-IRD - 780nm

  • High Power Infrared LED with surface emitting area of 10.63 mm2
  • Dual-junction chip technology for maximum optical coupling in etendue-limited systems
  • Common anode copper chip-on board package with high precision optical alignment features
  • Low thermal resistance: 0.6°C/W junction to case
  • Can be operated at variable drive currents up to 18A DC and 22.5A Pulse.
  • Complements Luminus extensive CBT/CFT-90 series ranging from 405 nm to 940 nm for medical, instrumentation and industrial fiber coupled illumination

CBM-90-IRD-X33-940nm

  • Mosaic Array Infrared LED chipset with surface emitting area of 9 mm2
  • Vertical chip LED technology for high power density and uniform emission • High thermal conductivity copper coreboard package
  • Can be operated at variable drive currents up to 18A

Applications & Markets

  • 8 Instrumentation

    T&M and instrumentation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 767486674

    LED light sources

  • Shutterstock 122152

    Photodiodes & optical sensors

Luminus

Luminus Devices develops and manufactures solid-state lighting solutions to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination.

Read more
Luminus Logo

Documents

  • Luminus CBM 90 IRD 780 Datasheet
  • Luminus CBM 90 IRD 940 Datasheet
