New IPS Graphic Displays with High-contrast in the sunlight

11/06/2021

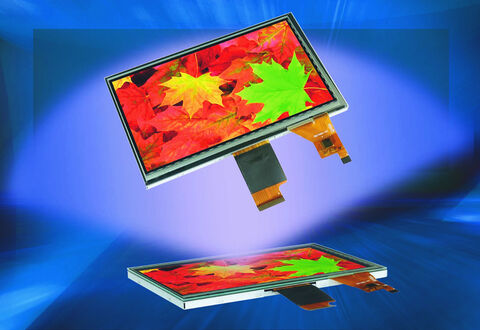

The TFT Graphic Displays with IPS (In-Plane Switching) technology have stable contrast and all-round viewing angles that are usually only provided by OLED displays. They also are so bright that what they’re displaying can be seen clearly, even in bright surroundings. With these LCD screens with IPS (in-plane switching) technology, the display remains sharp and high-contrast at wide viewing angles of more than 170° – something you’d usually only associate with OLED displays. However, with a maximum brightness of 1,000 cd/m², they are, by contrast, still clearly legible even in direct sunlight.

The graphic displays in various sizes, from 2” (EA TFT020 23AINN) to 4.3” (EA TFT043 42BITC)

Main Features

TFT043 42BITC features:

  • 4.3” TFT Full Color
  • AACS Technology with IPS for unlimited viewing angle
  • 480x272x3 DOTS
  • 1000/800cd/m² Without/with Touchpanel
  • 24-BIT RGB Interface
  • Integrated controller SC7283
  • Single supply 3.3V
  • Wide temperature range (TOP -20°C - +70°C)
  • Optionally with PCAP and Touch controller GT911

EA TFT020-23AI features;

  • 2.0” TFT full color
  • AACS Technology with IPS for unlimited viewing angle
  • 240x320x3 DOTS, controller ST7789V
  • 800 or 640cd/m² Without/with Touchpanel
  • 18-BIT RGB Interface
  • 8/16-BIT Parallel Interface
  • SPI Interface
  • Integrated controller ST7789V
  • Supply voltage 3.3V
  • Wide temperature range (TOP -20°C - +70°C)
  • Optionally with PCAP and Touch controller GT911
Documents Tech question
Electronic Assembly IPS Graphic Displays

New IPS Graphic Displays with High-contrast in the sunlight

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 8 Instrumentation

    T&M and instrumentation

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • 65 rocktouch

    TFT-LCD displays

Display Visions

Display Visions (previously Electronic Assembly) markets a broad spectrum of top-quality industrial displays to customers in a number of industries ranging from process automation and machinery manufacturing to IT.

Read more
Display Visions Logo vroeger Electronic Assembly

Documents

  • Electronic Assembley TFT020 23 AI Datasheet
