New fan-less factory automation solution

10/11/2023

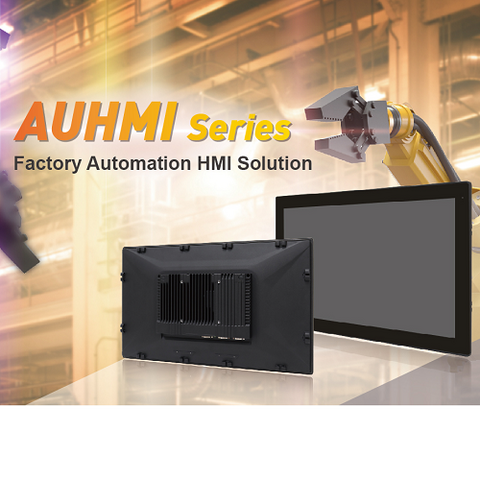

The AUHMI series include HMI (AUHMI -9C) and display (AUHMI -1A). It has the ranging from 10.1” to 21.5” TFT-LCD with IP66 certified front bezel. It is powered by Intel Tiger Lake 11th generation Core i3 and i5, which provides high performance and fast graphic processing ability. It supports sunlight readable solution for bright sunlight working environment. Including high brightness, AG/AR coating (for option), optical bonding and auto-dimming.

Main Features

AUHMI-9C HMI:

  • 10.1”, 15.6", 21.5" Industrial Compact Size Panel PC
  • 11th Gen. Intel Core i3/i5 Processor
  • 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 front bezel
  • Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Support Expansion via Full-size Mini-PCIe and M.2 slots
  • Support TPM2.0 hardware security
  • High Brightness 1,000 nits for option

AUHMI-1A Display (10.1", 15.6", 21.5"):

  • Industrial Fanless Display
  • IP66 Compliant Front Bezel
  • High Brightness LCD and Auto Dimming for Option
  • DC 24V Power Input
  • Flat Front Panel Touch Screen
  • Gap Free Sealing and Slim Front Frame Architecture at Front Bezel
Documents Tech question
Aplex AUHMI

New fan-less factory automation solution

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

  • 65 rocktouch

    TFT-LCD displays

Aplex Technology

APLEX Technology Inc. is one of the leading brands in industrial computer products. The company is dedicated to satisfying customer’s needs by offering comprehensive solutions and applications.

Read more
Aplex Logo

Documents

  • Aplex AUHMI 110 APH V1 6 Datasheet
  • Aplex AUHMI 910 CPH V1 5 Datasheet
