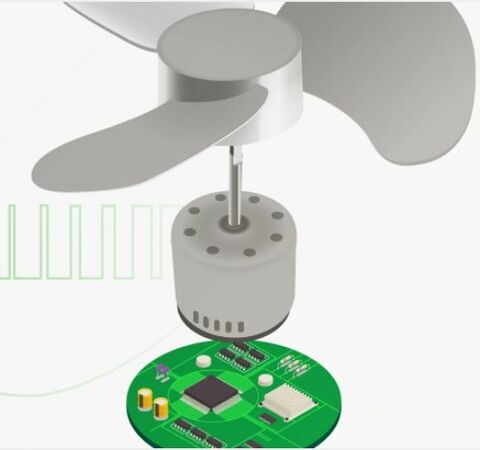

New BD66FM5250 Brushless DC Motor Flash MCU

13/05/2022

This new device includes a back-electromotive force filter to ensure more stable control of the sensor-less square wave during startup and low speed conditions and also includes a hardware MDU to provide increased calculation speed. These features make the device suitable for use in various square wave and sinusoidal wave BLDC motor applications.

The device contains 8K×16 of Flash Program Memory, 2048 bytes of RAM Data Memory, 512 bytes of EEPROM, an operating frequency of up to 20MHz, a (10+1)-channel high speed 12-bit analog to digital converter and four timers which can implement PWM output/capture input functions. For BLDC control, the device provides a BLDC motor control circuit, which contains a 16-bit timer for rotational speed monitoring, three 10-bit complementary PWM outputs with a dead-time function as well as an over current protection (OCP) function.

Main Features

CPU Features:

  • Operating voltage: fSYS=32kHz~20MHz: 4.5V~5.5V
  • Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
  • Power down and wake-up functions to reduce power consumption
  • Oscillator types:
    - Internal High Speed 20MHz RC – HIRC
    - Internal Low Speed 32kHz RC – LIRC


Peripheral Features:

  • Flash Program Memory: 8K×16
  • RAM Data Memory: 2048×8
  • True EEPROM Memory: 512×8
  • In Application Programming function – IAP
  • Watchdog Timer function
Documents Tech question
Holtek BD66 FM5250

New BD66FM5250 Brushless DC Motor Flash MCU

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 11 Motor Control

    Motor Control

Technologies

  • 48 shutterstock 1642185091

    Motion/motor control

  • Shutterstock 1632356350

    Microcontroller, microprocessors & memory ICs

Holtek

Holtek Semiconductor is a leading professional IC design house in Taiwan having its major business activities focused in the area of microcontroller and peripheral component design.

Read more
Holtek semiconductor logo web

Documents

  • Holtek BLCD Motor Flash MCU BD66 FM5250v100
