Main Features

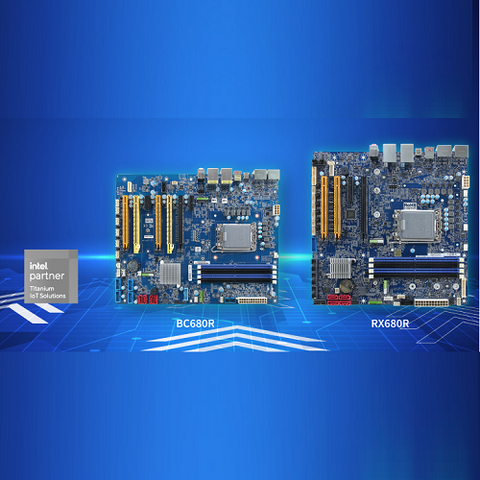

BC680R:
ATX motherboard with efficient quad independent displays to enhance data-intensive applications
- LGA 1700 Socket supports 12/13th Generation Intel® Core™ processors, Intel® R680E Chipset
- 4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket, up to 128GB.
- 2 x HDMI 2.0b and 2 x DP 1.4a, supporting 4K@60Hz.
- 1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4, 1 x Gen3 PCIe x1, 2 x Gen 3 PCIe x1 Open End.
- 2 x Intel® I225-LM 2.5G Gigabit Controller
- 1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2x, 8x USB 2.0 (Headers), 2 x USB 3.2 Gen 2 (Headers)
- 1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230 with CNVi Support
- 6 x COM
- ATX Power
Avalue RX680R:
Micro ATX motherboard with perfectly balanced performance space, suitable for diverse industrial applications
- LGA 1700 Socket Supports 12/13th Gen. Intel® Core™ i9/i7/i5/i3 Processors, (Max. TDP at 65W) with Intel® R680E Chipset
- 4 x 288 Pin DDR5 Dual Channel U-DIMM Socket, Support Up to 128GB (ECC Memory Support by CPU)
- 4 x DP++, 1 x LVDS Header
- 1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4 Open Ended
- 2 x RJ45, Intel® I225-LM/I226-LM 2.5 Gigabit Ethernet Controller
- 1 x USB 3.2 Gen 2x2 Type C, 6 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 2, 8 x USB 2.0
- 2 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230
- 1 x RS-232/422/485, 5 x RS-232
- ATX Power
