New 3-axis Vibration Sensors for DAM and river floodgate equipment monitoring

11/02/2022

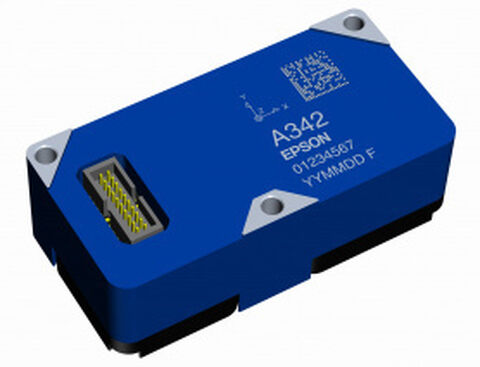

Two new vibration sensors, the M-A342VD10 and the M-A542VR10, the latter of which has a dust- and water-protected RS422 interface. Both products are compliant with the evaluation criteria for motors in ISO 10816 and ISO 20816. Both also are three-axis vibration sensors with digital velocity and displacement output and are characterized by low noise, high stability, and low power consumption thanks to crystal vibration sensor elements produced using Epson's unique microfabrication technology.

Main Features

  • ISO 10816 and ISO 20816 compliant: Support velocity and displacement output
  • Wide dynamic range: No need to adjust the measurement range to match the magnitude of vibration
  • Impervious to magnetic fields: Quartz crystal sensors can accurately measure motors that generate a strong magnetic field
  • Resistant to noise: Digital output is resistant to the effects of noise
  • Simple measurement environment: No charge amp, A/D converter or other peripheral equipment needed
  • High reliability: Mean time between failures (MTBF) of 87,600 hours guaranteed
Documents Tech question
Epson M A542 VR1 Epson0m0a342vd10 autoresize 278 213 autoresize 278 213

New 3-axis Vibration Sensors for DAM and river floodgate equipment monitoring

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 9 Remote Monitoring

    Remote Monitoring

  • 8 Instrumentation

    T&M and instrumentation

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • 62 shutterstock 1184841823

    Sensors

  • 48 shutterstock 1642185091

    Motion/motor control

Epson

Epson Electronics is a world leading manufacturer of Semiconductors, Sensors, Sensing Systems and Timing Devices targeted to all markets like industrial, automotive, medical and communication.

Read more
Corporate Logo R

Documents

  • NEW 3 AXIS VIBRATION SENSORS
  • M a342vd10 briefsheet e rev1 0
  • M a542vr10 briefsheet e rev1 0
