NEVO+600 and NEVO+1200 Line power supplies

26/06/2020

With the NEVO Line Vox power offers a high configurable output voltage and wattage with the NEVO+600 delivering up to 600W in a 5” x 3” x 1.61” package and the NEVO+1200 delivering up to 1200W in a 6” x 6” x 1.61” package with both Industrial and Medical approval.

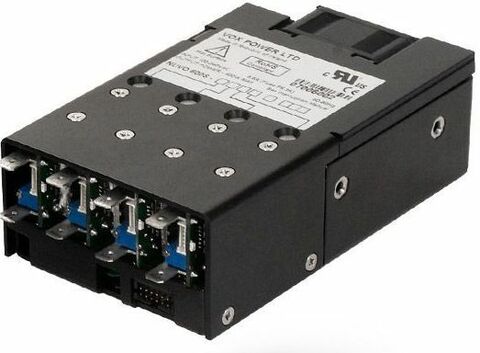

NEVO+600 offers four isolated output modules which can be configured into a high power 5”x 3” single output power supply or a multiple output power supply with up to 8 isolated outputs.

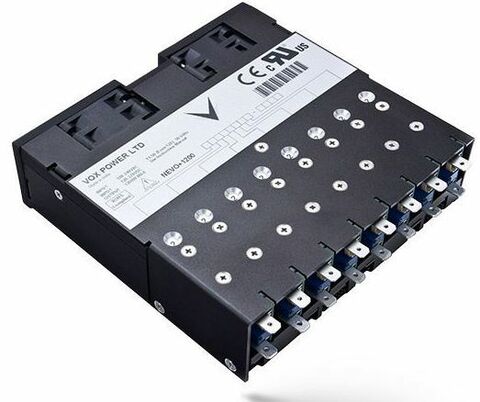

NEVO+1200 offers up to eight output modules, where any combination of outputs can be fitted to create a power solution with up to sixteen isolated outputs.

Documents Tech question
Vox Power Nevo600 S masthead Vox Power Nevo1200

NEVO+600 and NEVO+1200 Line power supplies

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Input: 85 – 264 VAC, 120 – 370 VDC
  • Power: Max. 600W (For Nevo+600) Max. 1200W (For Nevo+1200)
  • Efficiency: Up to 89%
  • Holdup: 20mS
  • Operating Temperature: -20°C To 70°C (Derating above 50°C)
  • Leakage: < 1500uA
  • Output: Configurable, see available types below.
    OP1 1.5V-7.5V,25A, 125W
    OP2 4.5V-15V, 15A, 150W
    OP3 9V-30V, 7.5A, 150W
    OP4 18V-58V, 3.75A, 150W
    OP5 Dual 3.3V-15V, 5A, 2 x 75W
    OP8 Dual 24V, 3.125A, 2 X 75W
  • Compliance with standards: 60950-1; 62368-1 (For Standard model), 60601-1; 60601-1-2 (For Medical model)

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

  • Shutterstock 162948803

    Power solutions >1000 W

Vox Power

Vox Power designs innovative modular configurable power supplies and provides state-of-the- art conduction, convection or forced air cooled solutions for industrial and medical markets.

Read more
Vox Power Logo

Documents

  • Vox Power NEVO 600 S Industrial Datasheet
  • Vox Power NEVO 1200 S Industrial Datasheet
  • Vox Power NEVO series output 1 datasheet
  • Vox Power NEVO series output 2 datasheet
  • Vox Power NEVO series output 3 datasheet
  • Vox Power NEVO series output 4 datasheet
  • Vox Power NEVO Series Output 5 Datasheet
  • Vox Power NEVO series output 8 datasheet
