Modular Embedded Rugged Computers with Intel® Celeron® J1900 Processor

08/10/2021

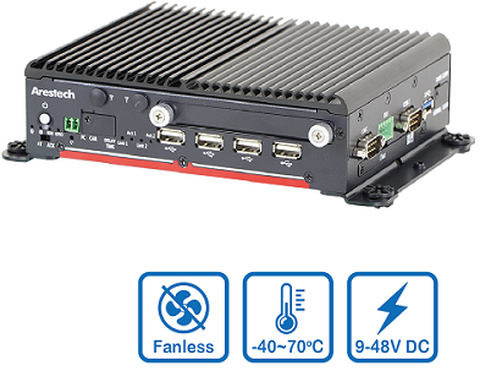

The Arestech MERA-2000 is a rugged box PC powered by Intel Atom or Celeron J1900 processors. The MERA-2000 is suitable for a wide range of applications like Digital signage control systems, factory automation applications, image processing, gaming and entertainment industry and network communications.

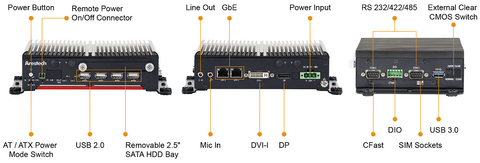

This rugged box PC contains rich I/O including: 5x USB, 2x COM, 2x LAN and 4x Digital Input and 4x Digital Output ports alongside DVI-I and a display port supporting dual displays.

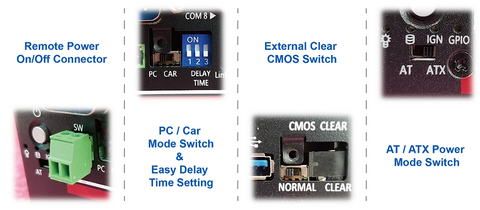

Cable-free and Jumper-less Design to Enhance Reliability
Supports 1x DVI-I and 1x DP
2x Intel® GbE Ports, Supporting Wake-on-LAN and PXE
2x SIM Card Sockets for Cellular Connections
2x Full-size Mini-PCIe Sockets
Supports Power Protection (OVP / OCP / RVP)
1x External AT / ATX Power Mode Switch
9 – 48V DC Wide-range Power Inputs with Power Ignition Function
Wide Operating Temperature Range from -40°C to 70°C
1x PC / Car Mode Switch
1x External Clear CMOS Switch

Main Features

Model	USB	COM	GbE	DVI-I	DP	HDD
MERA-2000-2L	x 5 1 x USB 3.0 4 x USB 2.0	x 2 RS 232/422/485	x 2 Intel^® i210-AT	x 1 up to 1920 x 1200	x 1 up to 1920 x 1200	x 1 (Removable)
MERA-2001-2L		x 2 RS 232/422/485				x 2 (Removable)
MERA-2001S-2L		x 6 RS 232/422/485				x 2 (Removable)
