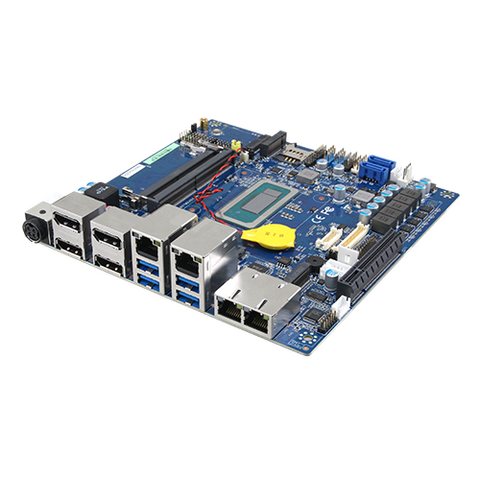

Mini-ITX Wide Temperature Motherboard, Ensuring Stable Operation for Extreme Environments

18/08/2023

The EMX-RPLP features a flexible CPU power range (12W to 45W) and highly customizable, industrial-grade, wide temperature processors. For high performance applications, the EMX-RPLP can be equipped with high-performance H-series processors and supports up to 64GB of DDR5 SO-DIMM memory. For data storage needs, customers can choose cost-effective processors and configure 2 x SATA III or 2 x M.2 SSDs to build RAID 0/1 disk arrays to ensure data security and storage. Designed for demanding industrial applications, the EMX-RPLP wide temperature design provides rugged reliability and uncompromising performance, making it competitive in the small form factor computer market and an ideal choice for various industrial applications.

Main Features

  • Onboard 13thGen. Intel® Core™ SoC i7/i5/i3 & Celeron®
  • BGA Processor
  • 2 x 262-pin DDR5 4800MHz SO-DIMM supports up to 64GB (non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for quadruple independent displays)
  • 3 x Intel® I226LM 2.5 Gigabit Ethernet
  • 1 x Intel® I219LM Gigabit Ethernet PHY
  • Realtek ALC888S
  • TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
  • 1 x M.2 Type B 3042/3052 (with 1 x PCI-e x1 (default), USB2.0, USB 3.2 Gen2 with 1 x SIM card slot support WWAN+GNSS
  • 1 x M.2 Key E 2230 support Wi-Fi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)
Documents Tech question
Avalue e MX RPLP

Mini-ITX Wide Temperature Motherboard, Ensuring Stable Operation for Extreme Environments

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 660745639

    Industrial & embedded motherboards

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue EMX RPLP Datasheet
