Micro-OLEDs and mini-TFTs

09/12/2022

Graphic displays in a miniature format with various panel technologies. The OLED displays excel with sharp contrasts in all viewing directions. The same goes for the colour IPS-TFT displays, which are also optionally equipped with a touch surface.

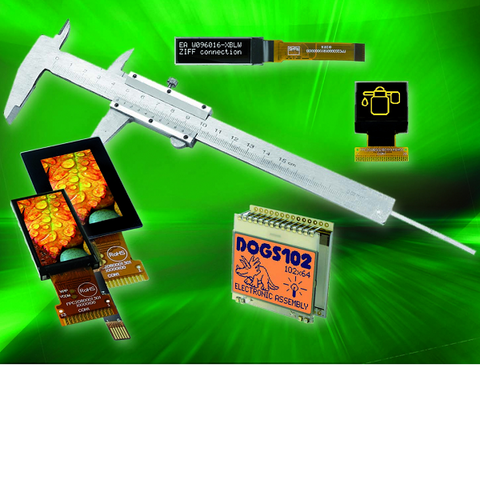

The micro-displays hardly bigger than a stamp. These graphic displays are available in both OLED and IPS-TFT technology versions. The OLED displays of the EA W096016 series are 0.84 inches in size. 96 by 16 white pixels sit on an active surface of 21 by 3.5 millimetres in size.

With a 0.96-inch screen size, the coloured TFT-IPS displays of the EA TFT009-81 series are a little bigger. Therefore, they also possess a resolution of 160 by 80 pixels on an active surface of just under 22 by 11 millimetres. Thanks to IPS technology with “All Angle Colour Stability” Management (AACS), the colours and contrasts remain virtually unchanged even with changing viewing angles.

Main Features

TFT009-81:

0.96” Low-power TFT
Wide viewing angle all round (IPS)
500cd/m² / 400 cd/m² with PCAP
3.3 V single supply
-20..+70°C (TOP.)
160x80 DOTS
Incl. controller ST7735S
PCAP with I²C Bus controller FT3267
4-WIRE AND 3-WIRE SPI
27.95x13.5 mm outline dimensions (W. TOUCH 18.7x31.9 mm)

W096016:

0.84” Low-Power OLED (typ. 15mA)
-40..+80°C (Top.)
96x16 dots
Bright white content with unlimited viewing angle
Incl. controller SSD1306B
EA W096016-XALW: I²C-Bus Interface
EA W096016-XBLW: I²C-Bus and SPI Interface (3- and 4-wire)
Fast response time (10µs) even at -40°C
Connection by stamp soldering or ZIFF connector
