MGM240P Multi-Protocol Wireless Module

27/02/2023

The MGM240P is a secure, high-performance wireless module optimized for the needs of battery and line-powered IoT devices for 2.4 GHz mesh networks. Based on the Series 2 EFR32MG24 SoC, it enables 802.15.4 (Zigbee®, OpenThread®) and Bluetooth® Low Energy connectivity, delivering exceptional RF performance and energy efficiency, Matter ready Smart Home Connectivity, industry-leading Secure Vault® technology, and future-proofing capabilities.

Main Features

  • Multi-protocol connectivity (802.15.4 and Bluetooth Low Energy 5.3)
  • Built-in antenna or RF pin
  • +10 or +20 dBm TX output power
  • -106.0 dBm 802.15.4 RX sensitivity
  • -98.5 dBm BLE 1M RX sensitivity
  • 32-bit ARM® Cortex®-M33 core at 39 MHz
  • 1536/256 kB of Flash/RAM memory
  • Vault High or Vault Mid security
  • Rich set of analog and digital peripherals
  • 26 GPIO pins
  • -40 °C to 105 °C
  • 12.9 mm x 15.0 mm
Documents Tech question

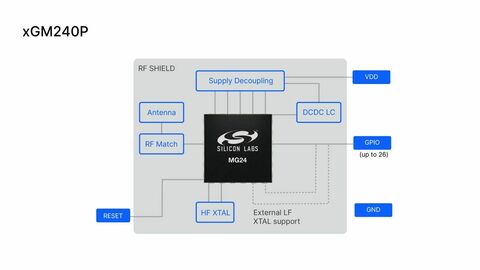

Xgm240p mgm240 module block diagram
