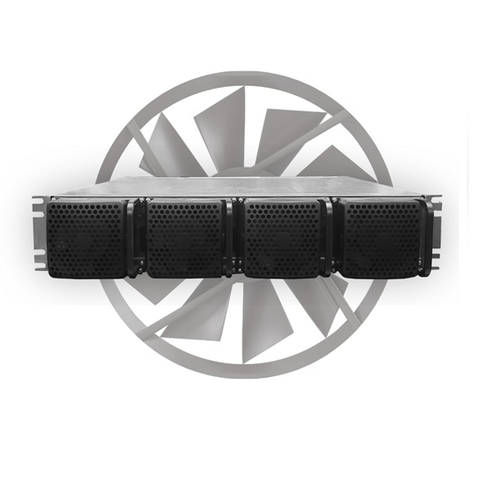

MercuryFlex: Now with a Wide Input Voltage Range 342VAC to 528VAC

31/05/2024

The three-phase input option for the MercuryFlex 3.8kW programmable power supply is ideal for mission-critical applications. Features wide-range programmable DC output, remote control, and monitoring, with uninterrupted power delivery in challenging AC line conditions. Compliant with UL/EN/IEC 62368-1: 2nd Edition for quality and safety.

Main Features

  • Universal input: 900VAC – 264VAC 1-phase (with full power factor control) and 342VAC – 528VAC 3-phase 4 wire
  • Programmable output voltage options: 28V, 56V, 125V, 180V, 250V, and 450V
  • Programmable current source: up to 160A
  • Parallel and redundant operation with automatic current sharing, fault isolation, and hot-swap compatibility
  • 15.2kW power in 2U high, 19" rack space
  • Control interfaces: Analog or Digital
  • HASS for High Reliability
  • Input voltage transient immunity: SEMI 47 Compliant, including 20ms holdup time; EN61000-4-4 and -5, level 4 compliant
Documents Tech question
Astrodyne TDI Mercury Flex

MercuryFlex: Now with a Wide Input Voltage Range 342VAC to 528VAC

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 14 Aerospace Mil

    Aerospace & Mil

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

Astrodyne TDI

Astrodyne TDI designs and manufactures Power Supplies and EMI Filters for a variety of markets, including Aerospace, Industrial, Medical, Military and Semiconductor Manufacturing.

Read more
Astrodyne Logo

Documents

  • Astrodyne TDI Mercury Flex Datasheet
