Marine certified Fanless Rugged Embedded System and power module

02/02/2024

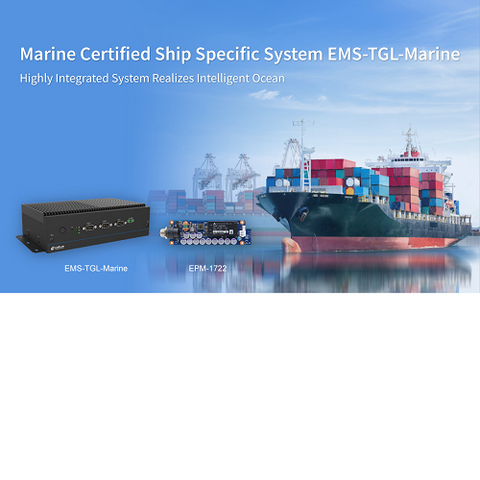

Avalue launched the IEC 60945 marine certified ship specific embedded computer platform EMS-TGL-Marine with EPM-1722 marine-grade power board which provides a stable and uninterrupted power supply and enhances the overall stability of the system. Taking the harsh marine environment into account, Avalue builds the EMS-TGL-Marine with advanced manufacturing processes and industrial-grade materials, combines IoT with ship navigation, and monitors the integrated ship automation systems. The EMS-TGL-Marine is applicable for piers, autonomous ships, ship control rooms or engine rooms, and enhances the intelligence of marine transportation.

Main Features

EMS-TGL_Marine:

  • Intel® 11th Tiger Lake-U Processor
  • Intel® Iris® Xe/UHD Graphics, Max. Up to 96EU
  • 2-Memory Socket, Max. Up to 64GB DDR4 3200
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 6-COM (4COM w/2.5KV isolation), 2-LAN, 1-8bit GPIO
  • Wide Operating Temp. -40°C ~ 60°C, Wide Voltage 9~36Vdc
  • dTPM 2.0, vPro, iAMT 15.0
  • CE, FCC Class A, IEC 60945 Certified

EPM-1722:

  • Typical +24Vdc(+9Vdc~+36Vdc) w/1.5kV isolation
  • Output voltage: 12Vdc
  • Output current: 5000mA
  • Input to output isolation: 1500Vdc
  • Operating temperature range: -40C~85C
  • Support EN50155, EN50121
  • Over voltage protection, hiccup mode Over current protection, hiccup mode
Documents Tech question
Avalue EMS TGL marine

Marine certified Fanless Rugged Embedded System and power module

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • Shutterstock 1090175828

    Marine

Technologies

  • Shutterstock 604148486

    Embedded I/O expansion modules & systems

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue EPM 1721 Datasheet
  • Avalue EMS TGL Marine Datasheet
