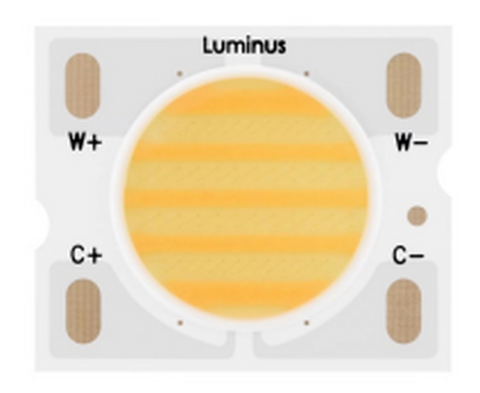

Luminus Devices is proud to announce the expansion of its Gen 2 CCT tunable chip on-board portfolio with the introduction of the CTM-18 and CTM-22. Both new COBs feature the same 6500K to 2700K color combination of the earlier released CTM-6, CTM-9 and CTM-14, along with two additional CCT ranges: 4000K to 1800K and high melanopic 5000K Salud™ to 2200K. The Luminus Gen 2 CCT tunable COBs are now available in three CCT ranges and five sizes, with light emitting surface (LES) diameters of 6, 9, 14, 18, and 22mm. Each of these provides industry-leading efficacy (lumens/Watt) and flux density, enabling customers to drive at higher currents to enable longer throws and more “punch” in their spot lights. These innovative Gen 2 COBs boast two independent channels, offering warm and cool white with over 90 CRI. Engineered with a multi-stripe design, they ensure excellent color mixing and high flux density, perfect for directional lighting applications. With the ability to achieve system beam angles ranging from 10 to 40 degrees using standard secondary optics, customers can enjoy uniform color output and exceptional light quality. The three available CCT range options, coupled with consistent white light
Luminus Devices develops and manufactures solid-state lighting solutions to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination.
