LTE CAT-4 wireless communication module in mPCIe format

24/04/2020

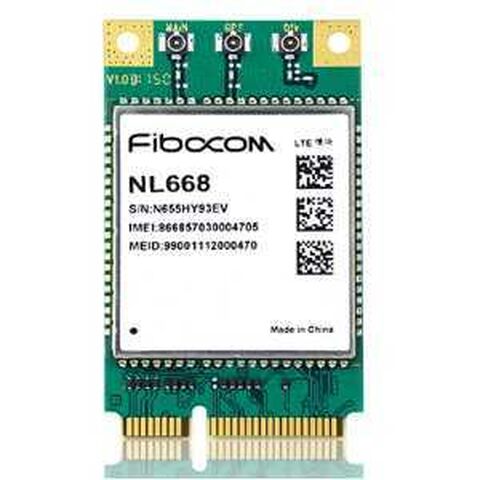

The Fibocom NL668-EAU is a LTE CAT-4 wireless communication module in mPCIe format. It supports LTE-TDD / LTE-FDD with fallback on 3G and 2G. Fibocom NL668 can be used in industrial routing, security, Internet of Vehicles and other industries.

Documents Tech question
Fibocom LTE cat 4 wireless communication module

LTE CAT-4 wireless communication module in mPCIe format

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • LTE FDD: Band 1/3/5/7/8/20/28
  • LTE TDD: Band 38/40/41
  • WCDMA: Band 1/5/8
  • GSM/GPRS/EDGE: 850/900/1800MHz
  • LCC 32x29x2.4mm
  • Operating Temperature: -30℃~+75℃
  • Optional Operating Temperature:-40℃~+85℃
  • Storage Temperature: -40℃~+85℃
  • Operating Voltage: 3.3V~4.3V typical 3.8V
  • AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands
  • X Power
    GSM850: 32.5 dBm±1dB
    GSM900: 32.5 dBm±1dB
    DCS1800: 29.5dBm±1dB
    WCDMA : 23.5dBm±1dB
    LTE FDD: 23.0dBm±1dB
    LTE TDD: 23.0dBm±1dB

Applications & Markets

  • 3 Automotive

    Automotive

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

  • 12 Security Surveillance

    Security & Surveillance

  • 6 Wireless Communication

    RF & Wireless communication

Technologies

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

Fibocom

Fibocom is a leading global provider of IoT (Internet of Things) wireless solutions and wireless communication modules offering reliable, accessible, secure, and intelligent wireless solutions to every IoT application scenario for the increasingly digitalized industries and enriched smart life of the whole society.

Read more
Fibocom Logo

Documents

  • Fibocom NL668 EAU LTE Module datasheet
