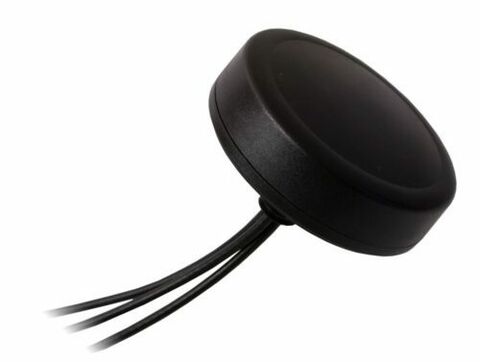

Low-profile, Screw Mount Combination Antenna Solution

22/01/2021

Unictron offers a powerful 3-in-1 maximum antenna solution for telematics applications. The antenna has 1 GNSS, 1 LTE & 1 WIFI elements. Customizable cable assemblies & connectors possible by specific request. The dimensions are 65mm (L) * 65mm (W) * 20.35mm (H). With an efficiency of LTE, low frequency 45.17%, high frequency 44%. It supports the following bands:

1*LTE, 698-960/1710-2690/3300-3800MHz.
1*GNSS, Beidou(1561MHz)/GPS(1575.42MHz)/GLOASS(1602MHz)
1*WIFI, 2400-2500/5150-5850MHz

Documents Tech question
Unictron MT 4 B AC Series

Low-profile, Screw Mount Combination Antenna Solution

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • 1*LTE, 1*GNSS, 1*WiFi Antenna Combination
  • LTE 698-960MHz, 1710-2690MHz, 3300-3800MHz Supporting
  • GPS / GLONASS / BEIDOU / GALILEO / QZSS / SBAS L1 Bands
  • WiFi Dual Bands, 2400-2500MHz, 5150-5850MHz Supporting
  • Excellent Out of Band Suppression, Up to 55 dB
  • 27dB Active Peak Gain
  • Customizable Cables and Connectors
  • RoHS & REACH Compliant

Applications:

  • Fleet Management & Telematics
  • Vehicle Navigation

Applications & Markets

  • 24 Telecom

    Wired data & telecom

  • 18 Traffic Transportation

    Traffic & Transportation

  • 10 Logistics

    Logistics

Technologies

  • Shutterstock 1226404321

    Antennas

  • Shutterstock 1047068560

    Wireless connectivity SoCs & modules

  • 30 shutterstock 1115081195

    Industrial embedded communication

Unictron

Unictron is engaged in R&D and manufacturing of antenna-solutions, piezo ceramics, ultrasonic transducers and circuit protection products.

Read more
Unictron Logo

Documents

  • Unictron MT 4 B AC BLW03 Datasheet
