Main Features
- High performance and compliant with RS-485 EIA/TIA-485 standard
- Integrated DC-DC converter for cable-side power
- Robust Galvanic isolatioin of digital signals
This browser is not fully supported.
This website uses cookies to provide you with a better visitor experience. Select here which type of cookies you allow.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

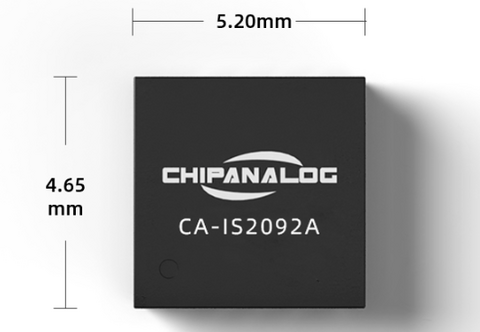

Our new product CA-IS2092A family of devices is galvanically-isolated RS-485 transceivers with built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs.
The transceivers have the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides up to 2.5kVRMS (60s) of galvanic isolation and ±150kV/μs typical CMTI Isolation improves data communication by breaking ground loops and reduces noise where there are large differences in ground potential between ports. An integrated DC-DC converter generates the 3.3V or 5V operating voltage for the cable-side.
Chipanalog is a high-tech company specialized in high-end analog and mixed-singal integrated products R&D and sales, offering isolation, interface, driver and power management as well as high performance analog chips for industrial control, power and renewable energy and automotive electronics sectors.
