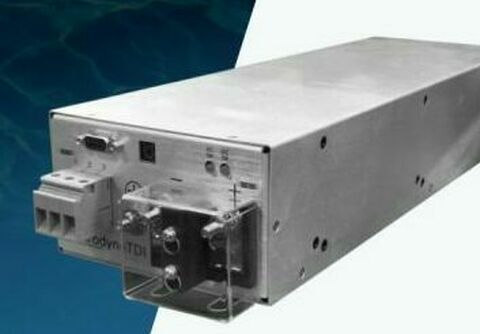

LiquaCore 5.5kW Water-cooled power supply

18/01/2024

5.5kW Water-cooled power supply - Ideal solution for embedded DC systems demanding industrial and military applications

Providing high-operating efficiency along with excellent reliability, compact size, and easy maintainability, LiquaCore™ power supplies are the ideal solution for embedded DC systems in demanding industrial and military applications. A fully adjustable, wide-range DC output is configurable via digital interface with real-time feedback.
Packaged in a 2U chassis, this AC/DC Liquid-cooled power supply will deliver up to 5.5kW from a 380-480VAC, three-phase power input. LiquaCore™ modules can be connected in parallel to deliver increased power for ultimate scalability in industrial process applications.

Main Features

  • DC Output Range: 0-60V (adjustable)
  • CANbus control interface
  • Constant voltage/ Constant current / Constant power control modes
  • High efficiency: 93% power conversion efficiency
  • Liquid cooled - water, DI water, WEG compatible
  • High reliability: 100% HASS tested
  • Designed to NAVSO P-3641A
  • 380V-480V (+/-10%)
Documents Tech question
1703693401090

LiquaCore 5.5kW Water-cooled power supply

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 2 Energy Utilities

    Energy & Utilities

  • 19 Infrastructure

    Infrastructure

  • Shutterstock 613309214

    Life sciences, Lab, Bio & Pharma

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 162948803

    Power solutions >1000 W

Astrodyne TDI

Astrodyne TDI designs and manufactures Power Supplies and EMI Filters for a variety of markets, including Aerospace, Industrial, Medical, Military and Semiconductor Manufacturing.

Read more
Astrodyne Logo

Documents

  • Liqua Coredatasheet
