Li-ION charger in power ranges 50-160W includes medical approval

20/04/2020

Key factors like protection against overcharging, over discharge etc, are carefully handled by the advanced build in µ-controller for the CCCV-charging process.
User safety is ensured by compliance to IEC 60335 and EN60601 – meeting even the stringest medical requirements.

With the new product line FRIWO provides the FOX-C chargers for cell configurations of 4S to 10S. The charging currents vary from 1.5 A to 4 A and can be selected in accordance with the capacity of the battery pack.

All units are equipped with a wide range input 90 – 264 VAC for worldwide use. Accordingly, the AC input offers a 2-pin C8 socket. The output of the units provides a 3-pin lead and JST plug. In addition to the connectivity for power transfer (+,-), an additional NTC connection offers the possibility to respond to temperature developments within the battery pack and to adjust the charging current appropriately. The plug is also compatible with FRIWO’s standard battery packs which results in perfectly matched solutions from a single source.

Documents Tech question

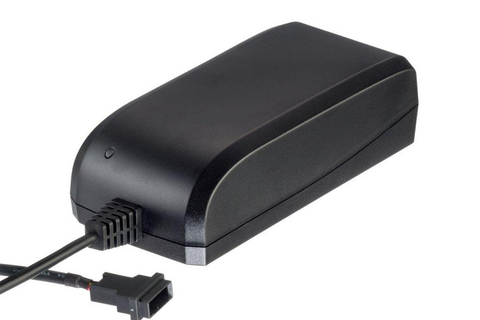

Friwo Li Ion charger

Li-ION charger in power ranges 50-160W includes medical approval

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • FOX 50
  • FOX 90
  • FOX 160

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1668063934

    Battery chargers

Friwo

FRIWO develops and produces digitally controllable power supply units and drive solutions from a single source. The product portfolio includes smart components for electric drives as well as premium technological chargers, battery packs, power packs, and LED drivers.

Read more
Friwo Logo

Documents

  • Friwo FOX li ion chargers datasheet
