IPS Displays on Raspberry Zero

21/07/2023

For easy connection of small displays from 1.5" directly to the Raspberry Pi Zero and the Raspberry Pi Zero 2. All monitor outputs from the small computer are automatically redirected to an high-quality industrial grade IPS display. Linux is used as an operating system.

As a result, individual, compact applications are also able to produce output on a small colour display. Furthermore, inputs are even possible, including through a touch panel integrated into the display. The programming language for applications is Python or C, as is typical for Raspberry.

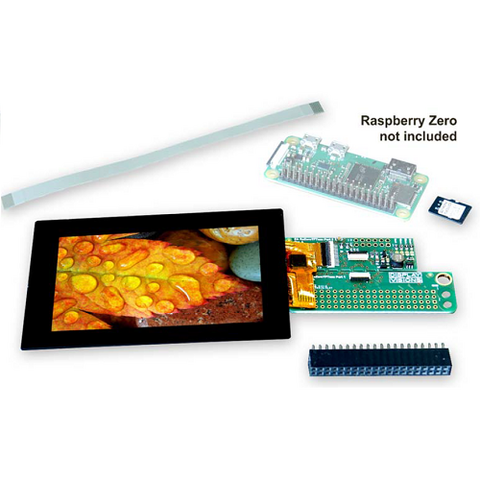

To make it easy to get started, DISPLAY VISIONS offers a RaZeroTFT starter package. It consists of an interface board and a suitable 1.5", 2", 2.8" or 3.5" display. The displays are equipped with a capacitive touch panel, with the exception of the smallest display. At 1,000 cd/m², the displays are extremely bright and easy to read, even in sunlight. Thanks to IPS technology, they provide brilliant colours in all viewing directions. All displays can be installed horizontally or vertically.


Main Features

  • Hat (Hardware Attached On Top) For Raspberry Pi Zero
  • IPS Displays From 1.5“ To 3.5“
  • Resolution From 240x240 To 480x320
  • SPI Interface
  • Optional Capacitve Touch Screen, Optically Bonded
  • I²C Interface: Sda, Scl For Touch
  • PWM Led Driver Included
  • High Contrast
  • Wide Viewing Angle Due To Aacs (All Angle Color Stability) Display
  • Hat Detachable, For Flexible Display Mounting
