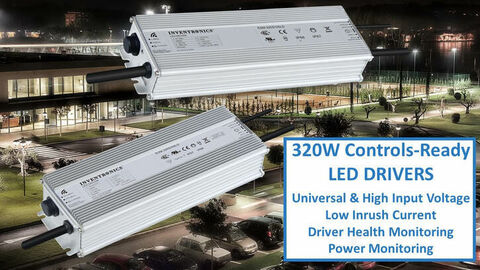

IP66/IP67 Controls-Ready LED with Digital Dimming

16/04/2021

Power Monitoring Universal (EUM) and High Input Voltage (ESM) Models available.

The two new series of LED drivers offer reduced costs with energy monitoring, the ability to read back crucial driver data and multiple dimming controls. The EUM-320SxxxLx and ESM-320SxxxLx are equipped with Controls-Ready features allowing interoperability to work seamlessly with various sensors and controls for stadiums, industrial, city management systems and horticulture lighting applications. The EUM-320SxxxLx offers universal input voltage from 90 to 305 Vac and the ESM-320SxxxLx offers high input voltage from 249 to 528 Vac. Both series provide the flexibility to customize the drivers output current to your customer’s needs before, during and after production in a simple and time-saving approach. They supply the full 320W of power at a wide range of output currents from 700 to 7600mA with wireless programming through Near Field Communication (NFC).

Documents Tech question
Inventronics eum esm 320

IP66/IP67 Controls-Ready LED with Digital Dimming

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with NFC
  • Isolated 0-10V/PWM/3-Timer-Modes Dimmable
  • INV Digital Dimming, UART Based Communication Protocol Compliant with T/CSA-051
  • Dim-to-Off with Standby Power
  • Always-on Auxiliary Power: 12Vdc,250mA,3W (Transient Peak Power up to 10W)
  • Low Inrush Current
  • Integrated Power Metering with High Accuracy up to ±1%
  • Output Lumen Compensation
  • End-of-Life Indicator
  • Thermal Sensing and Protection for LED Module
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
  • IP66 / IP67 and UL Dry / Damp / Wet Location
  • TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
  • 5 Years Warranty

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 22 Agriculture

    Agriculture

  • 1 Lighting Illumination

    Lighting & Illumination

  • 19 Infrastructure

    Infrastructure

Technologies

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics EUM 320 Sxxx Lx Datasheet
  • Inventronics ESM 320 Sxxx Lx Datasheet
