Ideal Diode and Load Switch Controller

16/02/2024

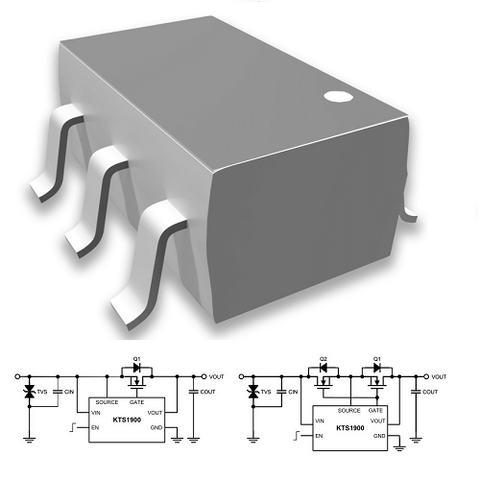

The KTS1900 is an ideal diode and load switch controller with reverse input protection. It has an internal charge pump to enable the use of an N-channel MOSFET with low on-resistance to replace a Schottky diode or a P-channel MOSFET based solution. It also can be used with two Back-to-Back MOSFETs for Load switching and Inrush Control. With low on-resistance N-Channel MOSFET, the lower forward voltage drops, less power dissipation, and heat dissipation can be achieved. The KTS1900 is packaged in a small fully green compliant 6-Pin SOT-23 Package (2.9mm x 1.6mm).

Main Features

  • 4V to 60V Wide Input Operating Range
  • Reverse Voltage Protection to –60V Requirements with a Suitable TVS Diode
  • ESD Ratings
    - HBM: ±2kV
    - CDM: ±750V
  • Internal Charge Pump for External High-Side N-Channel MOSFET Driving
  • Controller and MOSFET Driver Suitable for:
    - Single MOSFET for Reverse Protection
    - Two Back-to-Back MOSFETs, one for Reverse Protection and the other for Load Switching and Inrush Control
  • 1.5A/30μA Sink/Source Current Capability of MOSFET Gate Driver
  • EN Pin to Enable/Disable the Controller
  • 1μA Shutdown Current
  • 110μA Operating Quiescent Current
  • 500ns Reverse Protection Response Time
  • Small 6 Pin SOT23 Package (2.9mm x 1.6mm)
Documents Tech question
Kinetic KTS1900

Ideal Diode and Load Switch Controller
