Hybrid design 3.5-inch embedded SBCs：ECM-ADLS

11/08/2023

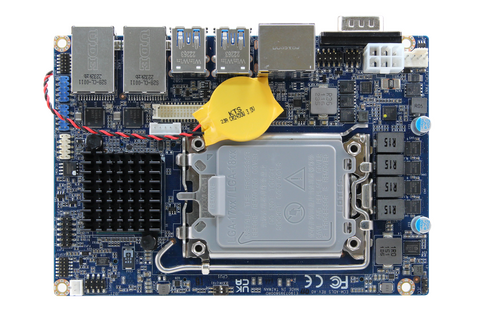

The ECM-ADLS, a 3.5-inch single board computer, features supporting for both Intel® 12^th & 13^th generation processors with LGA 1700 CPU socket, which is the first Avalue 3.5" SBC to incorporate DDR5 design. It also offers extensive I/O support, including 4 x USB 3.2, 4 x USB 2.0, 2 x COM, 1 x 8-bit GPIO, 2 expansion M.2 slots: E key support 2x PCIe x1 Gen 3, USB 2.0 for Wi-Fi module connection, M key support PCI-e x 4 Gen 3 NVMe or SATA device for storage, 2 high-speed 2.5G Ethernet transmission.

In addition , ECM-ADLS supports triple display: 1 x HDMI, 1 x DP and also 18/24-bit 2-CH LVDS or eDP share the same connector by BIOS selection (default LVDS). With its impressive features and robust performance, ECM-ADLS proves to be a versatile and reliable choice for retail, automation, vending machine, POS/KIOSK, signage and industrial transportation applications.

Main Features

Intel 12th Gen Core i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Up to 35W Max
Intel 13th Gen Core i5/i3 up to 35W Max
Intel® Q670E/H610E chipsets
Single 262-pin DDR5 4800MHz SO-DIMM socket, support up to 32GB
Triple Display: 1 x DP++, 1 x HDMI, 1 x 2CH LVDS or 1x eDP (Default LVDS)
Expansion Slot M.2 Key-E, M.2 Key-M
2 x RS-232/422/485, 4x USB 3.2 Gen 2 (note: H610E USB 3.2 Support)
Two Intel Gigabit Ethernet: 2x2.5 GbE (I226LM)
Realtel ALC888S Audio Codec
DC-Input, +12VDC
