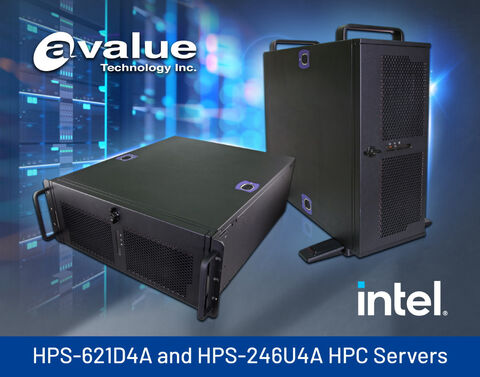

HPC Servers with Flexible 4U Rackmount

17/09/2021

High performance rackmount servers, HPS-246U4A and HPS-621D4A, available as L6 barebone or L10 full systems, designed for wide ranging applications including AI, 5G, IoT hub, Machine Learning, Edge Computing, and Medical Precision Computing.

In addition to its flexible HPC server designs, Avalue provides customization services for special requirements, certifications and even additional BIOS/IPMI features. Avalue goes beyond competitors to provide 5-year longevity support.

HPS-621D4A – Dual Socket High-Performance Edge Computing Solution:

Ideally suited to HPC applications that require significant CPU and GPU compute performance, the HPS-621D4A incorporates dual 2nd Generation Intel® Xeon® Scalable processors, plus up to three full-length, double wide GPU cards, and three 2.5-inch SATA drives that are front accessible. A 1300W PS2 power supply provides substantial and reliable power for all configurations. Multiple network configurations are supported via 4x RJ45 Gigabit Ethernet ports and multiple high-resolution monitors via GPU cards. The RTC battery is twice the capacity, to avoid on-site battery replacement.

HPS-246U4A - Entry-level High-Performance Computing Solution:

A highly integrated workstation that’s ideal for medical, manufacturing, and edge-AI applications, the HPS-246U4A supports Intel® 8th & 9th Gen Xeon® E processors, providing a great price-performance factor with low TCO. Up to three 2.5-inch SATA drives and one double-wide high-performance GPU card support.

Main Features

HPS-246u4A :

  • 19" 4U 528mm x 430mm x 174.8mm Chassis
  • Intel® LGA1151 Socket Supports 8th/9th Generation Core™ i7/ i5/ i3 / Pentium®/Celeron®/ Xeon® E Process
  • Intel® C246 Chipset
  • 1 x ATX 500W PS2 PSU
  • 3 x Front Accessible 2.5” storage bay
  • 4 x DDR4 2666MHz DIMM supports up to 128GB
  • 1 x 2.5" SATA3 SSD 240GB (Optional)
  • 1 x Super Multi DVD Rewriter (Optional)
  • IPMI 2.0 with AST 2500 BMC Controller Onboard


HPS-621D4A:

  • Support 2 x Intel® Xeon® SP Processor
  • Intel® C621 Chipset
  • 1 x ATX 1300W PS2 PSU
  • 3 x Front Accessible 2.5” storage bay
  • 12 x DDR4 2933/ 2666/ 2400/ 2133 ECC RDIMM/ LRDIMM up to 768GB
Documents Tech question
Avalue HPS 612 D4 A and HPS 246 U64 A HPC servers

HPC Servers with Flexible 4U Rackmount

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 19 Infrastructure

    Infrastructure

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 1163832229

    GPU and Edge computing

  • Shutterstock 660745639

    Industrial & embedded motherboards

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue HPS brochure
  • Avalue HPS 621 D4 A Datasheet
  • Avalue HPS 246 U4 A Datasheet
