High Wattage Household Medical Power Supply

26/11/2021

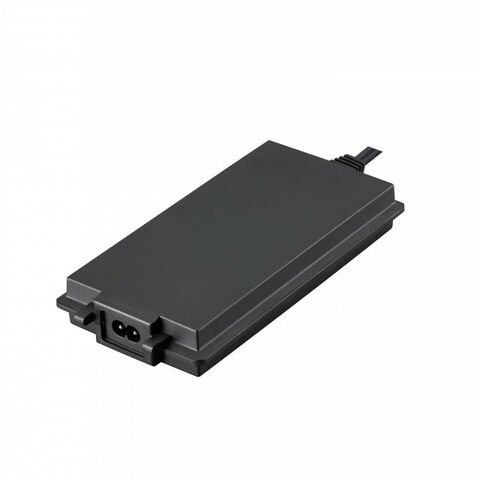

The FSP 150M-K series is high efficiency desktop adapter with IEC 320/C8 AC inlet, which output voltage is 48V and maximum output power is 150W. The FSP 150M-K full-series AC/DC external power supply features a wide power supply range, capable of stably providing 96~120 watts of power; the wide input voltage range of 80~264 VAC is applicable for larger household medical devices, such as sputum suction machines, nebulizer, respiratory therapy devices, pulse oximeters, portable oxygen supply devices, oxygen compression devices, etc. in order to prevent power cord falling off during medical instrument operation that results in the personal safety risk on the part of the user.

FSP provides FSP 150M-K full-series micro-customization services. Numbers of input sockets, IEC320/C6, IEC320/C8, IEC320/C14, & IEC320/C18 could be chosen according to users’ application. The power consumption of this series is less than 0.15W with no load, which is in line with DOE performance level VI and CoC EPS V5 tier 2 requirements. It has also passed dust-proof and water-proof IP54 level tests, which can be used at 5000 meters above sea level. This series is a highly reliable and stable medical-grade power supply.

Main Features

  • External dimensions 6.9" x 3.55" x 1.11"
  • Class II model in line with IEC 60601-1-11
  • Featuring power factor adjustment circuit
  • Overvoltage protection
  • Overcurrent protection
  • In line with RoHS requirements
Documents Tech question
FSP FSP150 M KFC

High Wattage Household Medical Power Supply

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1026772606

    AC/DC power supplies

FSP

FSP Group is the leading switching power supplier in the world. FSP Group produces large selections of products to serve its customers in LCD TV, LED Lighting, Medical, Industrial / Desktop computers and Servers.

Read more
FSP Logo

Documents

  • FSP FSP150 M KAA Datasheet
