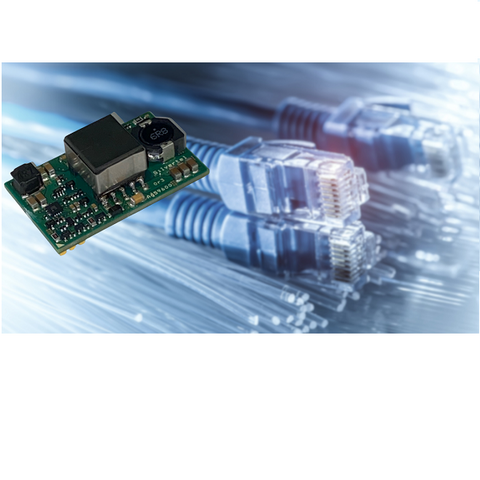

High-Power PD Modules for 4-Pair PoE++ Applications

19/01/2024

The latest PD modules specifically designed for 4-pair powering. Ag59612-LPB and Ag59624-LPB are capable of delivering IEEE802.3bt Class 6 power (50W) at either 12V or 24V respectively to a peripheral device. They are especially useful when a designer needs more power than “just” PoE+ but does not necessarily want to utilise the full 85-90W of PoE++.

Main Features

  • 50W continuous output power, 60W peak output power (IEEE802.3bt)
  • 93% efficient DC/DC converter
  • 12V and 24V variants available
  • Low output ripple & noise
  • Overload, short-circuit and thermal protection
  • Adjustable output voltage
  • Industrial temperature range
  • Minimal external components required
  • Class 6 IEEE802.3 PD
  • IEEE802.3bt, IEEE802.3at
  • IEEE802.3af compliant
  • Small Surface mount (SMT)package size
  • 1500Vdc isolation (input to output)
  • Silvertel “design-in” assistance
