- Height: 10.5mm Max
- Footprint: 16.5mm x 22.23mm
- Topology: Flyback transformer
- Functional Insulation
- Isolation voltage: 1500Vrms (hi-pot)
- Operating Frequency: 250kHz
This browser is not fully supported.
Alcom electronics appreciates the potential business relationship between our parties. Thank you! We want to make sure we address only the mailings that are valuable to you.

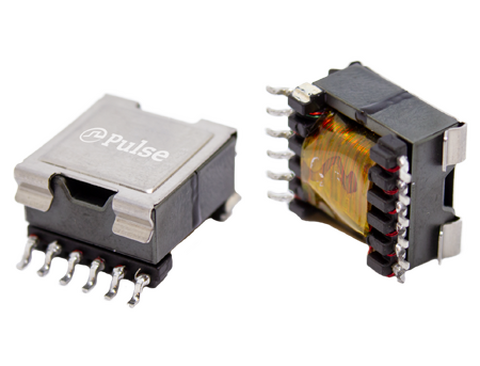

Pulse has expanded its range of high-power catalogue flyback transformer in the EFD15+ package with the introduction of the PAT6261 series. Using Pulse’s winding automation technology, the series is built with a very small form-factor of 16.5 mm x 22.3 mm x 10.5mm and uses the highly popular EFD core shape construction, known for their adaptability in the SMPS segment.
The PAT6261 is designed as a surface mount component and provides a maximum isolation capability of 1500Vdc between the windings. A high permeability ferrite material is utilized to minimize the number of turns and enable low DC resistance. The parts offer a substantially higher power rating (up to 144W) compared to similarly sized power transformers in the market.
Pulse Electronics is a global leader in design and manufacturing of electronic components.
