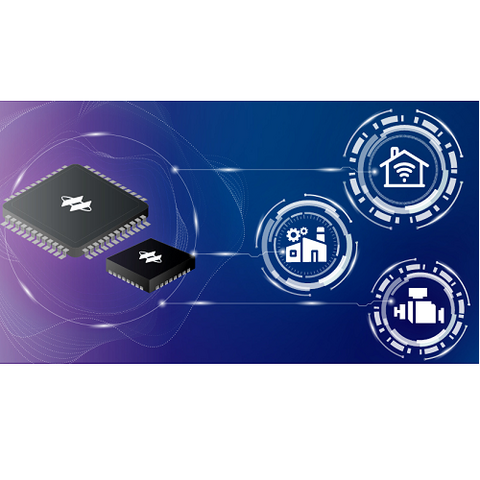

High-Performance Arm® Cortex®-M4 32-bit MCUs

07/07/2023

The HT32F49365/HT32F49395 series is based on a high-performance Arm® Cortex®-M4 processor core, which features a single-precision Floating Point Unit (FPU) that supports all Arm® single-precision data processing instructions and data types. The series also implements a full set of DSP instructions and a Memory Protection Unit (MPU) which provides enhanced application security. With a high level of functional integration, high computing performance and a comprehensive set of power-saving modes, these new devices can be used in various application scenarios such as smart homes, industrial control, embedded systems, motor control, etc

Main Features

Core: ARM®32-bit Cortex®-M4F CPU with FPU

  • 240 MHz maximum frequency, with a Memory Protection Unit (MPU), single-cycle multiplication and hardware division
  • Floating Point Unit (FPU)
  • DSP instructions

Memories

  • 256 to 1024 KBytes of Flash memory
  • sLib: configure any part of main Flash as a library area that is code excutable but secured and non-readable
  • SPIM interface: extra interfacing up to 16 Mbytes of external SPI Flash (as instruction/data memory)
  • Up to 96 + 128 KBytes of SRAM
  • External memory controller (XMC) with 2 Chip Select, supporting multiplexed SRAM/NOR/PSRAM and NAND memories
  • LCD parallel interface, 8080/6800 modes

Clock, Reset, and Power management

  • 2.6 V ~ 3.6 V application suppy and I/Os
  • Power on reset (POR)/ low voltage reset (LVR), and power voltage monitor (PVM)
  • 4 to 25 MHz crystal (HEXT)
  • Internal 48 MHz factory-trimmed RC (offering 1% accuracy at TA=25 °C, 2.5 % accuracy at TA=-40 to +105 °C), with automatic clock calibration (ACC)
  • Internal 40 kHz RC oscillator (LICK)
  • 32.768 kHz crystal oscillator (LEXT)
Documents Tech question
Holtek HT32 F49365 HT32 F49395

High-Performance Arm® Cortex®-M4 32-bit MCUs

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 17 Home Building Automation

    Home & Building Automation

  • 11 Motor Control

    Motor Control

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1632356350

    Microcontroller, microprocessors & memory ICs

Holtek

Holtek Semiconductor is a leading professional IC design house in Taiwan having its major business activities focused in the area of microcontroller and peripheral component design.

Read more
Holtek semiconductor logo web

Documents

  • Holtek HT32 F49365 95 Datasheet
