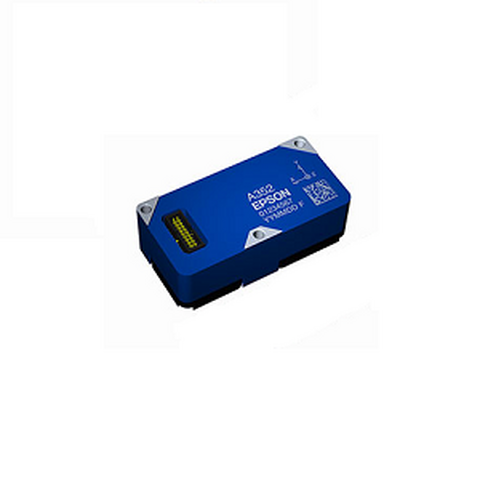

High Accuracy Three Axis Accelerometer

24/09/2021

The M-A352 sensor unit is EPSON's New Standard Accelerometer
Improved Shock Survivability :1,200 G (M-A351 : 300 G)

The M-A352 is a three axis digital output accelerometer featuring ultra-low noise, high stability, and low power consumption using fine processing technology of Quarts. Incorporating both high accuracy and durability, the versatile M-A352 is well suited to a wide-range of challenging applications such as SHM, seismic observation, condition monitoring for industrial equipment, and pose detection for industrial machinery (i.e. construction machinery/attachments, agricultural machinery/ implements, robots).

Main Features

Product NameM-A352AD
Size48 x 24 x 16 mm
Weight25 grams
Noise Density200 nGrms/rtHz @0.5Hz~
Input Range±15 G
Resolution0.06 µG/LSB
Bandwidth400 Hz (Max.)
Data Output Rate1000 Sps (Max.)
Shock Survivability1,200 G
Digital Serial InterfaceSPI/UART
Operating Temperature Range-30 to +85 °C
Power Consumption13.2 mA (typ.) @3.3V
Output Mode Selection (each axis)Acceleration, Tilt Angle
