Ground clearance and PCB dimensions are no longer a concern

22/01/2021

Pillar antennas are patented SMD type chip antennas that don’t require ground clearance area and their performance is independent of the dimensions of the ground plane of circuit board.

Small wearable devices normally have challenging installation environment for the antenna designers to design a satisfactory antenna. Miniature antenna on small PCB size may often result in rather poor performance, like occasional lags when listening to music, or problems in connecting to a Wi-Fi network. Furthermore, standard antennas made from FPC, or monopole chip antennas, show large shift of frequency when the device is worn on a human body. Such shift of the frequency, caused by the change of installation environment, may make antenna lose its signal receiving capability.

Documents Tech question

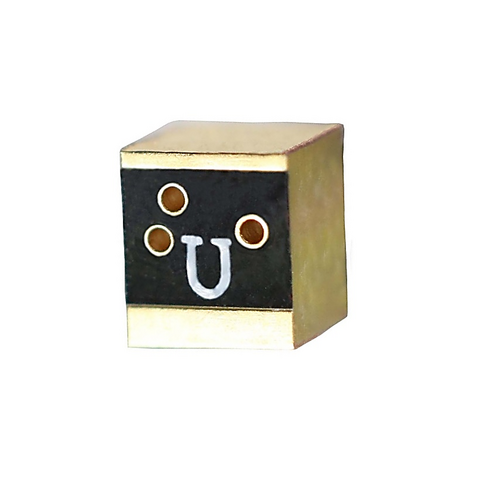

Unictron pillar CW337 BT chip antenna

Ground clearance and PCB dimensions are no longer a concern

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • No ground clearance requirement
  • Vertical polarization
  • Stable and reliable in performance
  • RoHS 2.0 compliance
  • SMT processes compatible

Applications & Markets

  • 25 Mobile Wearables

    Mobile & Wearables

Technologies

  • Shutterstock 1226404321

    Antennas

  • 30 shutterstock 1115081195

    Industrial embedded communication

Unictron

Unictron is engaged in R&D and manufacturing of antenna-solutions, piezo ceramics, ultrasonic transducers and circuit protection products.

Read more
Unictron Logo

Documents

  • Unictron Bluetooth Chip Antenna CW337 Datasheet
  • Unictron Pillar chip antennas productsheet
