Garz & Fricke extends product family of single board computers

06/03/2020

With the TANARO Single Board Computer (SBC) Garz & Fricke introduced the latest member of its product family of Single Board Computers, which was designed for industrial image processing. The SBC model is equipped with the current processor generation NXP i.MX8M Mini. The Quad Core Cortex-A53 processor system from NXP is manufactured using the latest 14LPC FinFET process. This guarantees optimum performance with low power consumption. At the same time, no wishes remain unfulfilled, even with extremely high requirements regarding operating temperature.

Documents Tech question

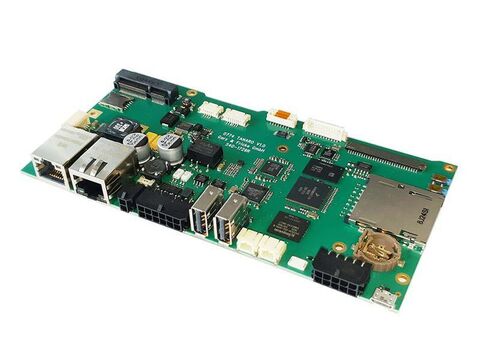

GF TANARO Board

Garz & Fricke extends product family of single board computers

  • Features
  • Applications
  • Technologies
  • Documents

Hardware & Technical Information

CPU

CPU Typei.MX8M Mini
Core ClassARM Cortex – A53 / Cortex – M4
Core Clock1.8 GHz
CacheL1 cache: 32 KB for instruction and data caches per core; 512 KB L2 cache
HW AcceleratorsOpenGL ES 2.0
RTCAccuracy: +/- 30 ppm at 25°C

Memory

Memory4 GB MLC eMMC
RAM1 GB 32 bit LPDDR4
SD-Card Slot4 bit MMC/SDIO/SD/SDHC

Operating Systems

Supported OSAndroid, Linux Yocto

Communication Interfaces

Network1x 100 Mbit/s, 1x 1GB/s (RJ-45);
USB1x 480 Mbit/s Host (Type A), 1x 480 Mbit/s OTG (Type Micro-AB)
CAN1x CAN (ISO/DIS 11898) galvanic isolated
RS-4851x RS-485 (Full duplex) galvanic isolated
RS-2322x RS-232 (RX/TX/CTS/RTS)
ModemWifi/BT4.0 or 3G/4G mPCIe card (Option)

Audio

Speaker output1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker
Audio Internal1x speaker connector

Device Dimensions

W x H x D159.0 x 18.0 x 80.0 mm

Power Supply

SupplyNom. 9 to 32 V DC

Typical Environmental Conditions

Storage Temp.-20…+70 °C
Operating Temp.0…+60 °C

Expansion Connector

InterfacesPCIe Mini connector (for half size card)

Display and Touch

Display InterfaceDual Channel LVDS, TTL 24bit
Touch InterfacePCAP I²C
Backlight Interface+12 V, +5 V, on/off, PWM

Order Information

Order Code900-4325R
