Full-color 5.65" & 13.3" reflective electrophoretic E Ink display modules

16/04/2020

Advanced Color ePaper (ACeP™) is a high quality, full color reflective display. In the ACeP™ system, the ink can produce full color at every pixel, without the use of a color filter array (CFA).

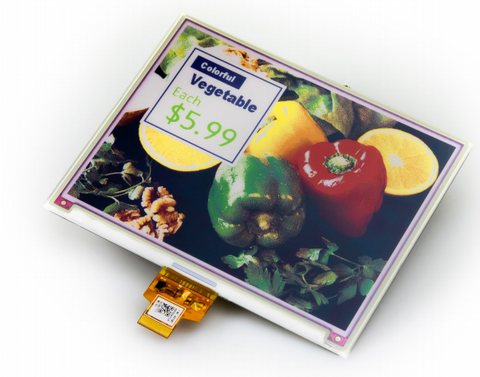

AC057TC1 (AB1024-EGA) is a reflective electrophoretic E Ink® technology display module on an active matrix TFT substrate.
The diagonal length of the active area is 5.65” and contains 600 × 448 pixels. The panel is capable of displaying 7-colors of black, white, red, yellow, blue, green, and orange images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.

AC133UT1 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate.
The first full-color 13.3“ display with extended color gamut (based on E Ink‘s ACeP™ technology) is constructed in such a way that all necessary color pigments are placed in the electrophoretic liquid in every single pixel of the display. The four basic colors (cyan, magenta, yellow and white) generate eight primary colors and allow production of over 32 000 colors.
The power consumption is still remaining extremely low, since the image buildup happens with the help of different voltages, which reorient the color pigments in the micro-capsules and then stay stable until the next image change.
The diagonal length of active area is 13.3” and contains 1600 × 1200 pixels. The recommended operating temperature should be kept from +15°C to +35°C.

Documents Tech question
Eink display modules full color

Full-color 5.65" & 13.3" reflective electrophoretic E Ink display modules

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • High contrast TFT electrophoretic
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Pure reflective mode
  • Bi-stable
  • Low current sleep mode
  • On chip display RAM
  • External SPI flash/EEPROM for waveform
  • On-chip oscillator
  • On-chip booster and regulator control for generating
  • Vcom, Gate and Source driving voltage
  • I2C Signal Master Interface to read external temperature sensor

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

Technologies

  • Shutterstock 611253698

    e-Paper-OLED-VFD-LCM

E Ink

E Ink Corporation is the originator, pioneer and commercial leader in ePaper technology.

Read more
E Ink Logo

Documents

  • Eink AC133 UT1 Specs sheet
  • Eink AC057 TC1 Specs sheet
