Framebuffer based Embedded Video Engine

22/11/2024

The BT820 is the 5th Generation Embedded Video Engine (EVE), an easy-to-use family of graphics controllers. Create advanced touch-enabled Human Machine Interfaces (HMIs) on large LVDS displays using the same object-oriented programming model as previous EVE generations.

The launch includes our BT820B IC, as well as a range of development modules and supporting software toolchains. As industry trends lean towards larger displays with more complex User Interfaces (UI), it often involves a requirement to incorporate live video streaming too.

The BT820B’s enhanced features and capabilities provide designers with an effective solution to implement these advanced UIs easily and get their product to market in a short time.

  • Full Colour Graphics created via simple commands
  • Intuitive Touch Control with simple software implementation
  • Integrated Audio Engine including built-in sound effects
  • Trouble-free Integration to existing designs with minimal external components
  • Ease of Development with comprehensive toolchain and example support

Main Features

  • LVDS Output for large displays up to 1920 x 1200
  • LVDS Video Input up to 1920 x 1200, with real-time video pre-processing
  • Frame buffer in external DRAM and 16 KB display list for rendering complex graphics
  • Directly attached storage for assets via NAND Flash, NOR Flash and SD Card
  • Enhanced touch engine supporting external Capacitive and Resistive touch controllers via I2C
  • Stereo audio output (via PWM, Delta-Sigma or I2S)
Documents Tech question

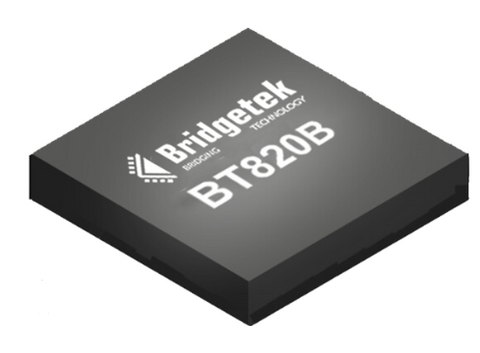

Bridgtek BT820 B

Framebuffer based Embedded Video Engine

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 16 Kiosk POS Digital Signage

    Kiosk, POS & Digital Signage

  • 12 Security Surveillance

    Security & Surveillance

  • 27 White Goods Home Appliances

    White Goods & Home Appliances

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 24 Telecom

    Wired data & telecom

Technologies

  • Shutterstock 24035881

    Interface ICs

Bridgetek

Bridgetek is a leading global semiconductor company providing high performance microcontroller units (MCUs), display IC products and developing innovative silicon solutions that enhance seamless interaction with latest connectivity technologies.

Read more
Bridgetek Logo

Documents

  • Bridgetek BT820 Datasheet
  • Bridgetek What is Eve flyer
