Flexilink Board-to-Board Connections

11/06/2021

The flexilinkjumper is a non-pluggable board-to-board connector that can be used in a variety of situations. Its space-saving design and high current rating of 11 Ampere per pin make it a winner. As with the flexilinkjumper, the flexilinkbtb ensures a secure contact with mechanical loads such as shock and vibration thanks to press-fit technology.

t has a variable pitch of 2 or 4 millimeters and offers two to 15 contact bridges. This allows you to choose board-to-board distances perfectly suited to your requirements, making it particularly suitable for

applications such as LED strips in building, automation, and automotive electronics. It withstands exceptionally strong mechanical loads such as shock and vibration. No elaborate soldering process is necessary – the flexilinkjumper uses press-fit technology to ensure the easy connection of two or more printed circuit boards.

Main Features

  • Variable pitch from 2–4 millimeters
  • 2–15 contact bridges
  • Up to 11 Ampere current rating per pin
  • Saves space and reduces costs; replaces spacers
  • Connection created using just a single part
  • Withstands high mechanical loads, shock, and vibration
  • Press-fit technology eliminates the soldering process
  • Customized board-to-board distance as an option
  • Press-fit system: Tcom press
Documents Tech question

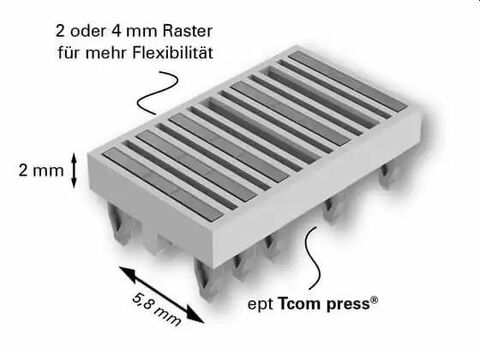

EPT flexilink jumper
