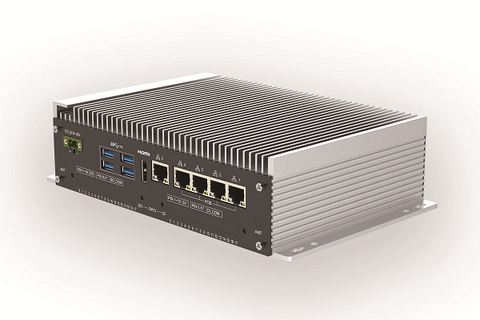

Fanless Industrial Vision Box PC

23/12/2022

TBOX-3220 is a new released fan-less industrial Vision Box PC model, specially designed for machine vision, industrial network applications. It adapts Intel 11th Gen. Tiger Lake UP3 Core i5-G1135G7 quad-core CPU processor, having advanced computer and graphic performance. TBOX-3220 storage can support 1 *M.2 2280 NVMe (PCIe x4) SSD and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 5* LAN ports (4*Support PoE), 4* USB3.0 ports, 2* USB2.0 port, 1* RS232 and 1* RS485, Optional 32*GPIO (TBOX-3211 model); The power input is DC 9~36V voltage, and has over-current, over-voltage and reverse-polarity protection.

Main Features

  • Support Intel 11th Gen. Tiger Lake UP3 Core i5-1135G7 processors
  • 1* DDR4 memory socket, max. up to 32GB
  • 1* M.2 2280 (PCIe x4 NVMe), and 1* 2.5” SATA Storage
  • Two independent displays: 1* HDMI, 1* VGA
  • DC 9~36V input, with over-current, over-voltage, polarity protection
  • 5* GLAN (4* PoE), 4* USB3.0, 2* USB2.0, 2*COM
  • 1 Mini-PCIe slots for expansion
  • Industrial -20 ~ + 60℃ operating temperature range
Documents Tech question
Taicenn TBOX 3220

Fanless Industrial Vision Box PC

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

  • Shutterstock 740406568

    Industrial PC & systems

Taicenn

TAICENN, founded in Shenzhen, is a leading global provider and manufacturer of industrial panel PC, industrial display and industrial& embedded PC products, which are designed specifically for systems and applications that require excellent performance, high-level reliability and stability, long supply period and support.

Read more
Taicenn logo

Documents

  • Taicenn TBOX3220 Datasheet
