EtherCAT Slave IC Solution for Smart Factory

27/11/2020

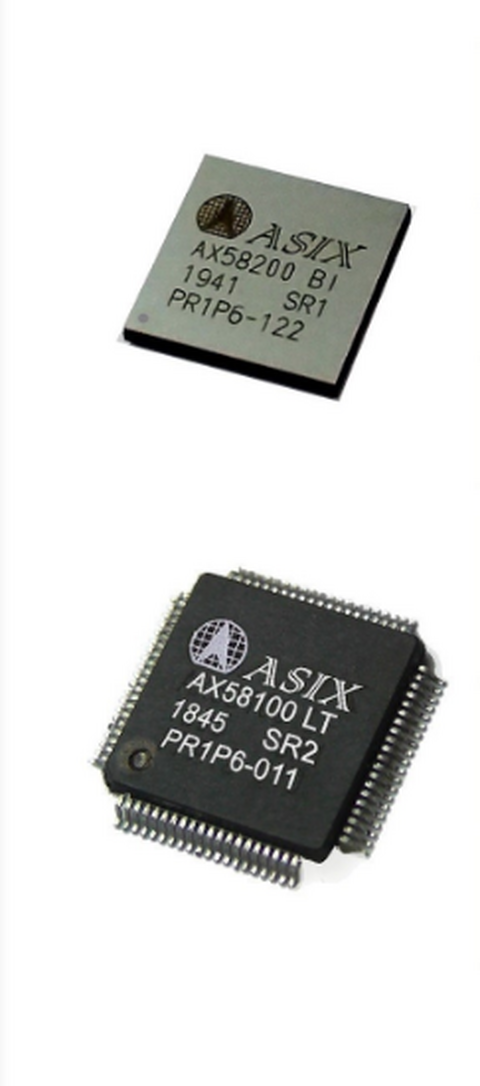

AX58x00 family EtherCAT slave product provide designers an easy-design, small package size and cost-efficient Industrial Ethernet EtherCAT slave controller solution, and is suitable for motor/motion control, digital I/O control, sensors data acquisition, robotics, EtherCAT IO-Link master, EtherCAT Junction slave module, etc. industrial automation fieldbus applications.

The EtherCAT (Ethernet for Control Automation Technology) is a real-time, deterministic, high performance and open industrial Ethernet network protocol and can ensure the data transmission certainty and real-time by using a unique principle called “Processing on the fly”. The EtherCAT network can also be installed by using an existing Ethernet network environment directly so it can be implemented on an existing factory network environment much easier and cheaper.

Documents Tech question
Asix Ether CAT slave

EtherCAT Slave IC Solution for Smart Factory

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
Part n°ProcessorOn-Chip Flash (Bytes)On-Chip Data RAM (Bytes)On-Chip Boot Loader ROM (Bytes)Security Protection ROM ( Bytes)USB OTGEthernet MAC
AX58200ARM Cortex-M4F 192Mhz512K Dual Bank160K32K4KHS10/100 Mbps (w/RMII, H/W Cryptography)
AX58100–––––––
Part n°ESC Fast EthernetESC RAM (Kbytes)ESC FMMUESC Sync ManagersESC Disturbed ClockPackage/sizeTemperature Range
AX582002x Internal PHY

1x MII

98864-bitHSFBGA-144

10×10 mm

0.8mm pitch

-40~+85

-40~+105

AX581002x Internal PHY

1x MII

98864-bitLQFP-80

12×12 mm

-40~+105

Applications & Markets

  • 11 Motor Control

    Motor Control

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 557910970

    Industrial controls networking

Asix

ASIX Electronics Corp. is a leading fabless semiconductor supplier with focus on networking, communication and connectivity applications.

Read more
Asix Logo

Documents

  • Asix AX58100 product brief
  • Asix AX58200 product brief
