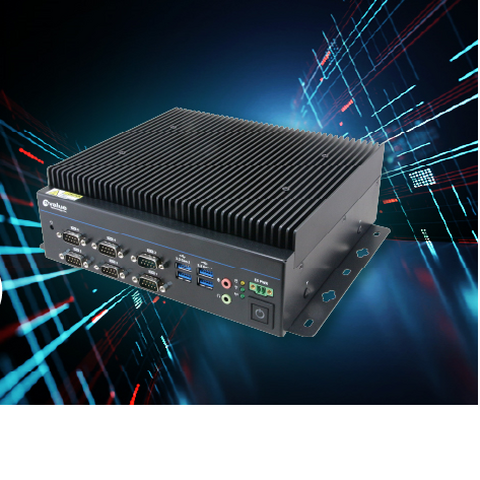

EPS-ADS High-Performance Fanless Rugged System

27/10/2023

EPS-ADS rugged fanless embedded system. Driven by Intel®12th Gen CoreTM processor (codenamed Alder Lake-S) with Intel® Iris UHD Graphics, EPS-ADS redefines high-performance computing, providing exceptional computing power, flexibility and scalability, making it applicable for industrial automation, smart control, machine vision, data analysis and embedded applications.

To meet different challenges, Avalue EPS-ADS provides powerful support driven by Intel® 12th Gen Alder Lake-S processor with Intel® UHD Graphics 770, which offer up to 32 graphics execution units (EUs) for outstanding computing performance. Using silent fanless design, passing 50G shock test and 5G vibration test, plus IP50 rating for water and dust resistance, and operating at a wide temperature range from -10°C to 55°C, EPS-ADS rugged system is sturdy and reliable, ensuring exceptional stability and reliability even in harsh environments. Equipped with a variety of I/O ports, including four 4K@60Hz display outputs, two HDMI 2.0b and two DP++ 1.4 ports, two Intel® Gigabit Ethernet (2.5GbE and 1GbE) ports, three storage options (one 2.5-inch hard disk slot and two M.2 B/M slots), six COM ports (two RS232 and four RS232/422/485), and eight USB ports (two USB 2.0 and six USB 3.2), EPS-ADS offers a myriad of connectivity options to meet different application scenarios, giving users high flexibility and expandability. Furthermore, EPS-ADS fanless rugged system has a compact size, measuring 21.5cm x 20cm and only 7.5cm thick, does not take up much space and is easy to install in different places. Given its flexible I/O and fan options, Avalue EPS-ADS may be customized to users’ specific requirements and provide solutions to meet specific project requirements.

Main Features

  • Intel® 12th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor
  • Support H610E/Q670E
  • 2-DIMM Up to 64GB Dual Channel DDR5 SO-DIMM 4800MHz
  • 3-Storage (2.5” Drive Bay & 2-M.2 B/M)
  • 3-Expansion (mPCIe & 2-M.2 E/B)
  • Rich I/O 8-USB, 6-COM, 2-LAN
  • Support 5G, Wi-Fi 6E, 2.5G LAN
  • DC in +12V~24V, wide voltage
  • Support HW TPM 2.0
Documents Tech question
Avalue eps ads

EPS-ADS High-Performance Fanless Rugged System

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 604148486

    Embedded I/O expansion modules & systems

Avalue

Avalue Technology is a professional industrial computer manufacturing company, who is dedicated to developing the x86 and RISC architecture products.

Read more
Avalue Logo

Documents

  • Avalue EPS ADS Datasheet
