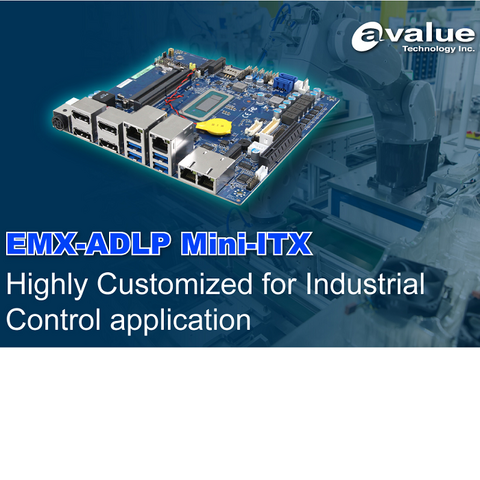

EMX-ADLP Mini-ITX to meet Comprehensive Industrial Control Needs

01/09/2023

The EMX-ADLP fully supports Intel® 12th Generation H/P/U series processors and meets the power requirements of 15~45W for H/P/U series, as well as high-performance H series processors. (CPU by BOM option)

With a flexible CPU power range (12~45W) and highly customizable CPU options, the compact and complete design of the EMX-ADLP making it competitive in the small form factor computer market and an ideal choice for various industrial applications.When optimal efficiency is required, the EMX-ADLP can be equipped with high-performance H-series processors and support up to 64GB of DDR5 SO-DIMM memory. For storage needs, the EMX-ADLP can be configured with economical processors and high-capacity disks such as 2 x SATA III or 2 x M.2 SSDs to build RAID 0/1 arrays for secure data storage.

Main Features

  • Onboard 12th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
  • 2 x DDR5 4800 SO-DIMM (up to 64GB, non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (4 independent displays max.)
  • 3 x Intel® I226LM 2.5G, 1 x Intel® I219LM Gigabit Ethernet.
  • Realtek ALC888S, TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
  • 1 x M.2 Type B 3042/3052, 1 x M.2 Key E 2230, 1 x M.2 Key B 2242, 1 x M.2 Key M 2280
  • H-series CPU: 1 x PCI-e x8 Gen 4 slot
  • P/U-series CPU: 1 x PCI-e x4 Gen 4 slot
  • 2 x USB3.2, 2 x USB 3.0, 4 x USB2.0 by pin header
  • 4 x RS232, 2 x RS422/485 COM Port
  • 1 x 16-bit GPIO
  • Onboard NuvoTon NPCT754AADYX support TPM 2.0
  • Support Line-out & Mic-in & Front audio pin-header
  • DC in +12V~24V
