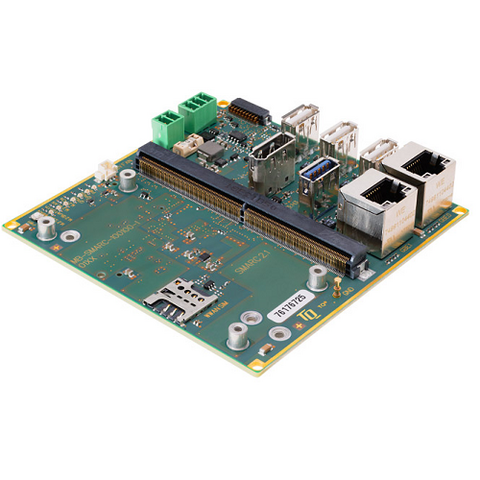

Main Features
- Supported modules:
- SMARC modules with pinout based on SMARC 2.1 specification - External Interfaces:
2 × Gigabit Ethernet
4 × USB (1x Type A with up to 5Gb/s, 3x Type A with 480Mb/s)
1 × DisplayPort (DP++)
1 x RS485 - Power Button
- Internal Interfaces:
- M.2 socket B-Key 2242/3042 or 2252/3052 with USB 2.0, USB 3.0 and SATA (for SATA SSDs or WWAN modules, with micro SIM Card support) - Either/or assembly option:
- M.2 socket E-Key 2230 with PCIe x1 and USB 2.0(e.g. for WLAN cards) + M.2 socket M-Key 2230 with PCIe x2 (e.g. for ultra-compact PCIe x2 NVME SSDs)
- M.2 socket M-Key 2280 with PCIe x4 (for NVMe SSDs, PCIe based accelerator cards or PCIe x4 adapters) - Feature connector (GP-I2C, PM-I2C (SMB), SER TX / RX, GPIO) to extend functionality e.g. with IoT sensors and GPIO Power supply:
• Voltage: Environment: 12 V DC ±5 %
• Extended temperature: –20 °C to +85 °C
• Form factor / dimensions: 100 mm × 100 mm
