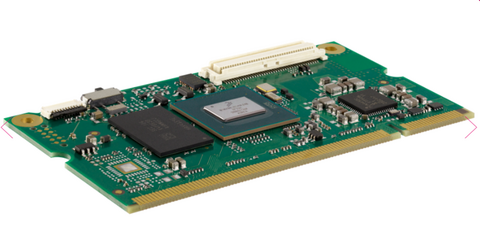

DHCOM i.MX8M Plus Powerful SoM module with NPU

17/06/2022

Powerful dual or quad Cortex-A53 processor with Neural Processing Unit.

  • Real-time control, machine learning, AI, advanced multimedia, industrial automation.
  • NPU with up to 2.3 TOPS enables matrix calculations e.g. for pattern, speech, object recognition
  • Advanced image and video processing via video encoding and decoding
  • Compatible with other modules from the DHCOM family (SODIMM-200 socket)
  • No heat sink necessary thanks to 5-Cent Cooling Solution
  • Guaranteed long-term availability of 10+ years

Main Features

  • Board type : Pluggable SOM
  • 5-Cent Cooling available
  • CPU details: Quad ARM Cortex-A53 up to 1.6 GHz, Single ARM Cortex-M7 up to 800 MHz
  • CPU vendor : NXP
  • CPU type: Cortex-A53, Cortex-M7
  • Co-processor available
  • Number of cores : 5
  • GPU available
  • GPU type: 2D / 3D graphics accelerator
  • PMIC : PCA9450CHN
  • Features: Neuronal Processing Unit (NPU) with 2.3 TOPS to accelerate machine learning inferences, two camera inputs and HDR ISP, enhanced multimedia capabilities (encode and decode H.265 and H.264 at 1080p 60fps)
  • Security: Widevine and PlayReady DRM content protection, public Key Cryptography with RSA and ECC algorithms, TrustZone, Resource Domain Controller with 4 domains and 8 regions, Secure Boot / High Assurance Boot (HAS)
  • LPDDR4 DRAM 1: 1 / 2 / 4 / 8 (on request) GB
  • E2Prom: 256 Byte
  • microSD available
  • External RTC available
  • Bluetooth available
  • Bluetooth version: Bluetooth® v5.0 (BR/EDR/BLE) with chip antenna or U.FL connector
  • WiFi available
Documents Tech question
Schermafbeelding 2022 06 17 092839

DHCOM i.MX8M Plus Powerful SoM module with NPU
