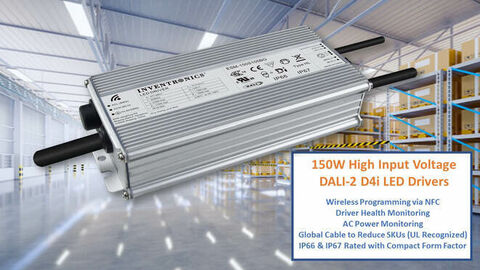

DALI-2 D4i LED Drivers Supplying 150W of Power with a Wide Output Current Range

25/06/2021

New series of high input voltage LED drivers with DALI-2 D4i certification allowing two-way communication for driver health monitoring and asset management, interoperability with numerous sensors and controls and a cost-effective solution for managing intelligent lighting systems.
The ESM-150SxxxBx series offers various integrated features that reduces production costs by eliminating additional components such as AC relays and external power supplies requiring less wiring. They are the first DALI-2 D4i series to operate from 249-528Vac and supplies the full 150W of power at a wide output current across four models from 700-4200 mA.

Main Features

  • High Input Voltage, Next Generation Platform
  • DALI-2, D4i Certified
  • Offers Intra-Luminaire Solutions and Driver Health Monitoring
  • Integrated 16Vdc Bus Power Supply Based on DALI-2
  • Integrated AC Power Monitoring with High Accuracy up to ± 1%
  • Wireless Programming via Near Field Communication (NFC)
  • Compatible with Zhaga Book 24 Programmers
  • Multiple Dimming Timers
  • Controls-Ready
  • Dim-to-Off with Low Standby Power
  • Always-On Auxiliary Power: 24Vdc, 125mA, 3W (Transient Peak Power up to 10W)
  • Input Surge Protection:
  • 6 kV DM, 10 kV CM
  • Input Over Voltage and Input Under Voltage Protection
  • Thermal Sensing and Protection for LED Module
  • Output Lumen Compensation
  • End-of-Life Indicator
  • SELV Output Models Available
  • IP66/IP67 and UL Dry/Damp/Wet Location
  • UL Class P
  • TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Year Warranty
Documents Tech question
Inventronics ESM 150 Sxxx Bx Series

DALI-2 D4i LED Drivers Supplying 150W of Power with a Wide Output Current Range

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

Technologies

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics ESM 150 Sxxx Bx Datasheet
