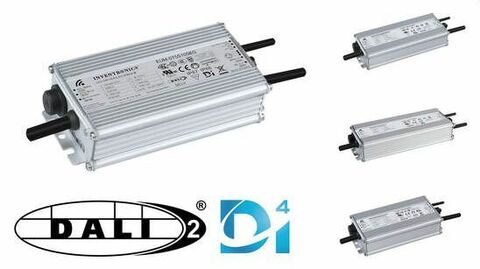

DALI-2 D4I certified LED drivers

13/11/2020

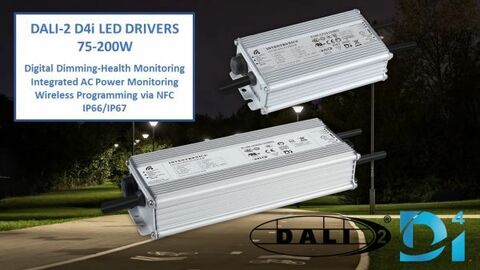

New family of IP66/IP67 LED drivers with DALI-2 D4i certification provides OEMs the ability to monitor crucial driver information to reduce maintenance costs and the ability to plug and play controls. The expansion includes four different series that provide 75W, 100W, 150W and 200W power levels in addition to the existing 240W models. The expanded EUM-Bx series allow for reduced inventory SKUs, streamlined production, increased design flexibility and a wide input voltage range of 90-305Vac to assist world-wide applications.

The EUM-Bx family offers the time-saving feature of wireless programming via Near Field Communication (NFC) and can be configured without power or a mains connection, providing an effortless approach to programming. The EUM-Bx family expansion offers four separate driver series.

The DALI-2 D4i certification allows the convenience of plug and play compatibility with a wide range of applications and supplies crucial health and diagnostics data so users can improve their lighting system and ensure consistent lighting. Coupled with the integrated AC power monitoring, users can measure energy consumption and better evaluate their ROI.

Documents Tech question
Inventronics EUM Bx series Dali 2 DI4 Inventronics EUM Bx series

DALI-2 D4I certified LED drivers

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Key specifications:

  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with NFC
  • DALI-2 and D4i Certified
  • 3-Timer-Modes Dimmable
  • Dim-to-Off with Standby Power ≤ 0.5 W
  • Always-on Auxiliary Power: 24Vdc,125mA,3W (Transient Peak Power up to 10W)
  • Integrated 16Vdc Bus Power Supply based on DALI-2
  • 7 Year Warranty

Applications & Markets

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 1018551598

    LED ecosystem support & solutions

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • EUM-075SxxxBx 75w Datasheet
  • EUM-100SxxxBx 100W Datasheet
  • EUM-200SxxxBX 200W Datasheet
  • EUM 240SxxxBx 240W Datasheet
