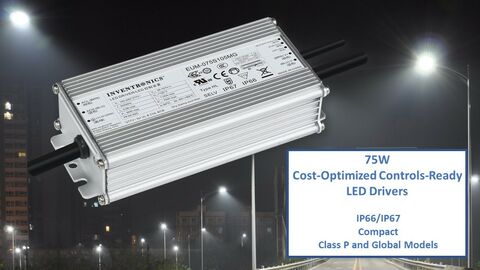

Controls-Ready IP66/IP67 LED drivers 75W

22/01/2021

Inventronics expands their new family of Controls-Ready, IP66/IP67 LED drivers to include models supplying 75W of power. This is in addition to the previously released 200W and 240W models. The EUM-075SxxxMx provides Dim-to-Off functionality that facilitates integration with sensors or control systems to ensure optimal lighting performance. They also offer reduced inventory SKUs, increased design flexibility, simplified wiring for low voltage controls and a wide input voltage range of 90-305Vac to assist world-wide applications.

The EUM-075SxxxMx Controls-Ready features allows for a cost-optimized solution by simplifying wiring and utilizing the Always-On Auxiliary power of 12V, 250mA to power the controls module directly eliminating the need for a power pack. The auxiliary power also provides a transient peak up to 10W to allow for more controls, such as radios that tend to spike power periodically. The Dim-to-Off feature allows the user to turn the driver output off electronically which bypasses the power and voltage restraints associated with AC relays.

Documents Tech question
Inventronics

Controls-Ready IP66/IP67 LED drivers 75W

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

Features:

  • Full-Power at a Wide Output Current Range
  • Isolated Dimming Controls:
    – 0-10V, PWM, Multiple Timers
  • Controls-Ready
    – Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
    – Dim-to-Off
  • High Level of Built-in Surge Protection:
    6kV DM, 10kV CM
  • Inventronics Proprietary Digital Dimming Health Monitoring
  • UART Based Communication Protocol
  • Global Cable Design to Reduce SKUs (with UL)Optimized, More Compact Form Factor
  • End-of-Life Indicator
  • Output Lumen CompensationClass 2 and SELV Output Models Available
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous
  • 5 Year Warranty

Applications & Markets

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics EUM 075 Sxxx Mx datasheet
