Compact PCI Serial Solutions

13/10/2022

The PICMG CPCI-S.0 CompactPCI Serial standard, which evolved from the PICMG 2.0 specification, is the fastest, most versatile, most cost-effective open standard for CompactPCI (CPCI). The Serial standard is mechanically and electronically compatible with 3U and 6U euro-cards, defining an interface for high-speed switched fabrics with a star topology. Point-to-point connectors allow up to eight peripherals on one system slot without switches or bridges. Two of these connections can be PCI Express x8 fat pipes. Ethernet data transfer can be configured with full mesh topology, which allows up to 1000Base-T connections to all peripheral slots for redundant, safety-critical systems.

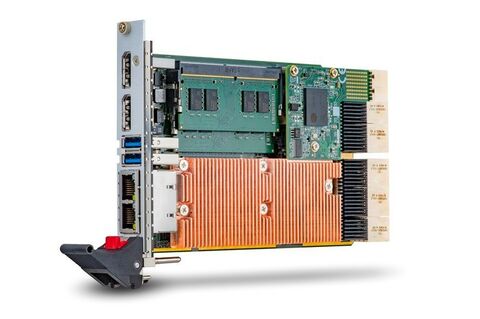

i7/ i5 Processor Blades

cPCI-A3525 Series

3U CompactPCI Serial 9th Gen Intel Xeon®/Core™ i7 Processor Blade

CPCI-S.0 Peripherals

cPCI-A3X10

3U CompactPCI Serial XMC Module Carrier

cPCI-A3H10

3U CompactPCI Serial 2.5" SATA Storage Carrier

Main Features

cPCI-A3525 Series
● PICMG® CPCI-S.0 CompactPCI® Serial Processor Blade

● 14nm multi-core 9th Gen Intel® processor, (formerly Coffee Lake Refresh)

● Max. 32GB DDR4-2666 by 2x SODIMM

● Supports 2x PCIe x8 Gen 3 and 2x PCIe x4 Gen 3

● Up to 10x USB 2.0/3.0, up to 7x SATA to rea


Documents Tech question
Pcie

Compact PCI Serial Solutions

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

.

  • Compact PCI Serial 17120818082365736
  • Download 1

Applications & Markets

  • Shutterstock 1090175828

    Marine

  • 18 Traffic Transportation

    Traffic & Transportation

  • 14 Aerospace Mil

    Aerospace & Mil

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1178903887

    Computer & System-on-Modules

  • Shutterstock 660745639

    Industrial & embedded motherboards

Adlink

Adlink's mission is to affect positive change in society and industry by connecting people, places and assets with artificial intelligence; we do this through the delivery of leading edge, robust and reliable hardware and software solutions that directly address mission-critical business and technology challenges.

Read more
Adlink Logo

Documents

  • ADLINK Compact PCI Brochure Enduring Performance 20220823
