IP66/IP67 Controls-ready LED Drivers with Dim-to-off functionality

11/12/2020

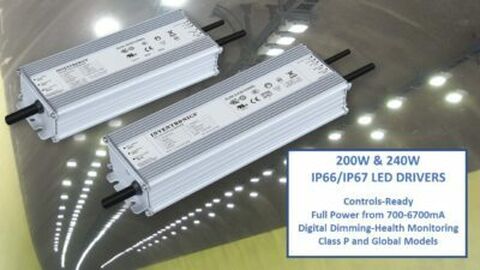

IP66/IP67 Controls-Ready LED Drivers with Dim-to-Off Functionality

Inventronics introduces their new family of IP66/IP67 LED drivers that are Controls-Ready with Dim-to-Off functionality that facilitates integration with sensors or control systems to ensure optimal lighting performance. The EUM-Mx family allows for reduced inventory SKUs, increased design flexibility, Controls-Ready features to simplify wiring for low voltage controls and a wide input voltage range of 90-305Vac to assist world-wide applications.
The EUM-Mx family also simplifies wiring and deliveries an optimized solution to low voltage controls by utilizing Inventronics Controls-Ready features. The Dim-to-Off and Always-On auxiliary power of 12V, 250mA can easily be paired with various sensors and provides a transient peak up to 10W to allow
for more controls, such as radios that tend to spike power periodically.

Documents Tech question
Inventronics EUM Mx family e1607342585449

IP66/IP67 Controls-ready LED Drivers with Dim-to-off functionality

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Programmability
  • Isolated 0-10V/PWM/3-Timer-Modes Dimmable
  • INV Digital Dimming, UART Based Communication Protocol
  • Dim-to-Off with Standby Power ≤ 0.5 W
  • Always-on Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
  • Output Lumen Compensation
  • End-of-Life Indicator
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
  • IP66 / IP67 and UL Dry / Damp / Wet Location
  • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Years Warranty

Applications & Markets

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 1836572383

    LED power drivers & controls

Inventronics

Inventronics is one of the world's top LED driver manufacturers specializing in building innovative, highly reliable and long-life products that are certified compliant to all major international safety and performance standards.

Read more
Inventronics Logo

Documents

  • Inventronics EUM 200 Sxxx Mx Datasheet
  • Inventronics EUM 240 Sxxx Mx Datasheet
