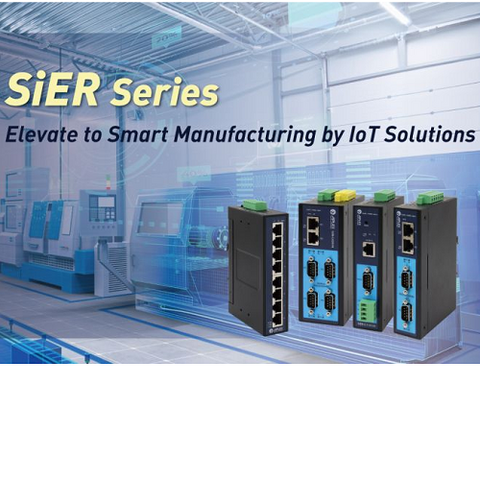

Compact AIoT Network Devices

12/04/2024

Brand new product line for smart manufacturing, the SiER series! SiER series is our AIoT solution includes Modbus gateway and Ethernet switch, which support comprehensive protocols and smart visualization software.

The most basic but essential method to bring AIoT into your factory is to create a digitalize information environment. By connecting and exchanging data between devices and the edge through network, Modbus gateway and Ethernet switch play important role in smart manufacturing deployment. However, APLEX SiER series includes, SiER-G1101M, SiER-G2201M and SiER-G4201M for Modbus gateway solution, and SiER-S0802N for Ethernet switch solution.

Main Features

Aplex SiER-S0802N features:

  • Ports: 8 10/100TX
  • Type of Switch: Unmanaged
  • Switch Fabric: 1.6Gbps
  • Power Consumption: 2.1W / 7.1BTU
  • Throughput: 1.19Mpps
  • Operating Temperature: -40 to 75°C
  • IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX standard

GM2201M/G1101M/G4201M:

  • Integrated Ethernet and RS-232/RS-422/RS-485 serial interface
  • Supports 32 Modbus TCP master and slave mode devices
  • Industrial standard 12~48V DC power backup, or 9~48V DC and
  • 24V AC power backup
  • Supports 10/100BASE-TX RJ45 transmission distance up to 100 meters
  • Support Modbus RTU. ASCII Master/Slave
Documents Tech question
Aplex sier series

Compact AIoT Network Devices

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 10 Logistics

    Logistics

  • 21 I Io T

    IoT

  • 7 Io T Industry 4 0

    IIoT & Industry 4.0

Technologies

  • Shutterstock 557910970

    Industrial controls networking

  • Shutterstock 740406568

    Industrial PC & systems

Aplex Technology

APLEX Technology Inc. is one of the leading brands in industrial computer products. The company is dedicated to satisfying customer’s needs by offering comprehensive solutions and applications.

Read more
Aplex Logo

Documents

  • Aplex Si ER S0802 N V1 0 Industrial Ethernet Switch Datasheet
  • Aplex Si ER G2201 M V1 1 Datasheet
  • Aplex Si ER G4201 M V1 2 Datasheet
  • Aplex Si ER G1101 M V1 1 Datasheet
