Choose the right 24VDC power supply

25/03/2022

Generally speaking, 24V power supplies are capable of some practical applications when it comes to the workplace or factory. There are a variety of situations and applications in which you can use a 24V power supply, including open frame or NAS.

24V Power Supply Recommendations

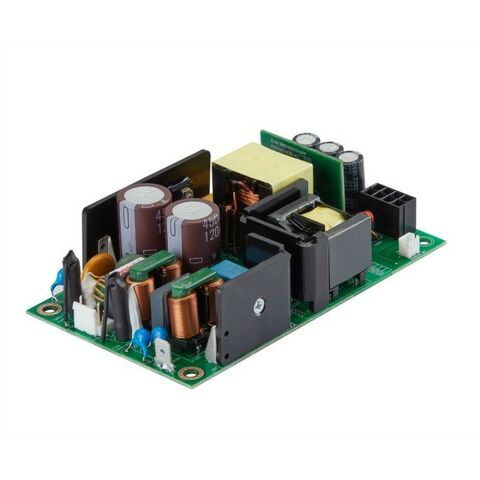

  • FSP260-P35-A24: The FSP260-P35-A24 is an open frame option you should highly consider as you weigh your power supply options with 24V. This power supply 24V has a Class-I design and AC-DC switching capabilities. This PSU is capable of delivering 260 watts of continuous power at 18.4 CFM forced air cooling and is constructed with safety in mind. The surge protection is ±2 KV diff., ±4 KV com. You’ll discover it’s most suitable for applications such as audio, information, and networking. It has high altitude 5000 meters operation, power ON/OFF remote control, PFC function built-in, and 1.5KVac isolated between PE and RETURN.

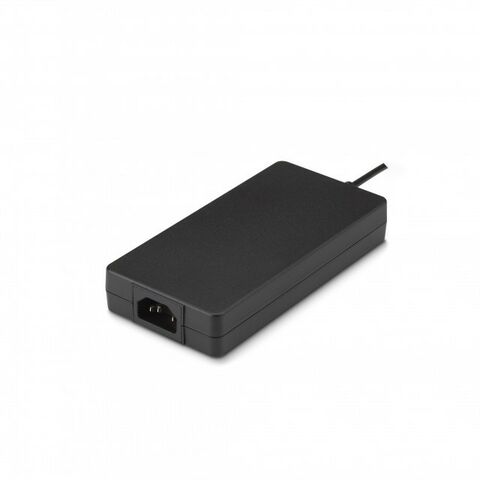

  • FSP120-AAAN3: When it comes to adapters, the FSP120-AAAN3 should be near the top of your list. It’s small as it’s only one inch in height and has a semi-slim shape. It has very high reliability and is safe to use as it has over current protection, over temperature protection, and over voltage protection. This adapter operates at 90 to 264 VAC input voltage. It’s an 120 watts AC to DC adapter which is made to be used in IPC systems, Embedded Systems, Printers, Monitors, and POS Systems, to name a few. It’s also designed for ITE application.

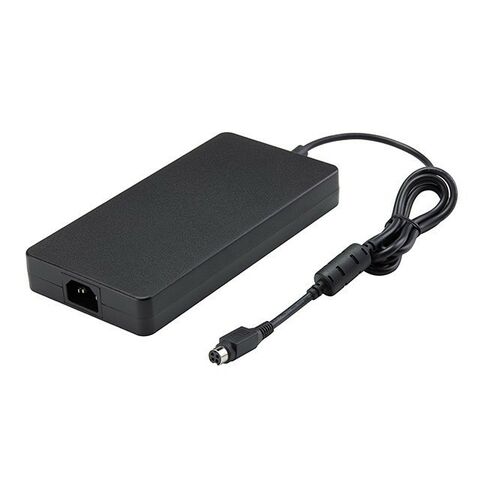

  • FSP330-AAAN3: Another adapter recommendation to consider is the FSP330-AAAN3. With PFC Circuit, it has high reliability and has safe construction which includes over current protection, over temperature protection, and over voltage protection. This product is a 330 watts AC to DC adapter intended for items that have a high wattage demand. Some applications include IPC systems, embedded systems, printers, monitors, and POS systems. The unit also meets EN55032, EN55024, and FCC class B emission limits, and is designed for ITE application.
Documents Tech question
210331 60646 ADE2 EB8 F 190328 5 C9 C92976 A1 EA 190326 5 C99 C0408 BB84

Choose the right 24VDC power supply

  • Applications
  • Manufacturer
  • Documents

Applications & Markets

  • 24 Telecom

    Wired data & telecom

  • 13 AV Broadcast

    A/V & Broadcast

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 1 Lighting Illumination

    Lighting & Illumination

FSP

FSP Group is the leading switching power supplier in the world. FSP Group produces large selections of products to serve its customers in LCD TV, LED Lighting, Medical, Industrial / Desktop computers and Servers.

Read more
FSP Logo

Documents

  • FSP120 AAAN3 Datasheet
  • FSP260 P35 A24 Datasheet
  • FSP330 AAAN3 Datasheet
