Capacitive Switch for Hidden Installation

12/11/2021

Conventional switches inevitably require mounting holes in the user interface. Not so with the new SCHURTER CHS. CHS stands for "Capacitive Hidden Switch". They can be mounted hidden behind the surface of non-conductive materials and are therefore invisible. This approach allows completely new possibilities for designing user interfaces that ideally meet the requirements of specific applications.

With capacitive switches, an electric field is built up on the user surface of the sensor. This technology is used to design a switch with the SCHURTER CHS that no longer requires direct sensor contact with the finger to trigger. The electrical field change required to trigger the switching process is still achieved even if a non-conductive material (glass, plastic, wood, or similar) is inserted between the sensor and the finger.

The new SCHURTER CHS is available in three different variants:

  • CHS 1 is a design without illumination and with a mounting depth of less than 6 mm the optimal solution for smaller developments.
  • CHS 2 is the solution for the switch with optical feedback. The RGB lighting can be used as a design element.
  • CHS 3 is the potted version with lighting for demanding use in harsh environments.

Main Features

  • Capacitive switch
  • Perfect sensitivity
  • Multicolor illumination
  • Standard Sensitivity for glass thickness of up to 2mm
  • Quick and easy installation behind non-conductive materials (glass, plastic, wood,...)
  • Allows free design, invisible installation
  • Fully potted for harshest conditions
  • Small mounting depth
  • Easy and hygienic cleaning
  • Water tolerant
  • Illumination area
  • Wearless, no moving parts
  • Wiping tolerant / Easy to clean
  • 3M Adhesive transfer tape 468MP
Documents Tech question

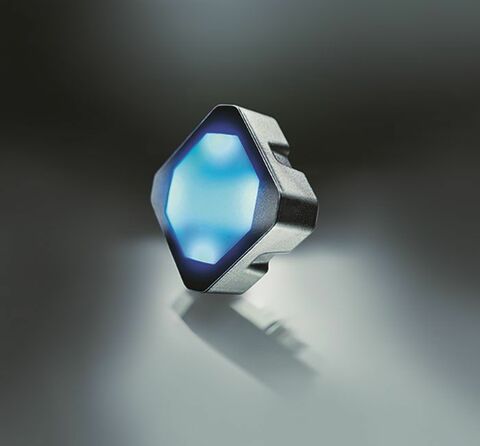

Schurter CHS switch
