Bridgelux F90 Series CRI90 LEDs for commercial lighting

21/05/2021

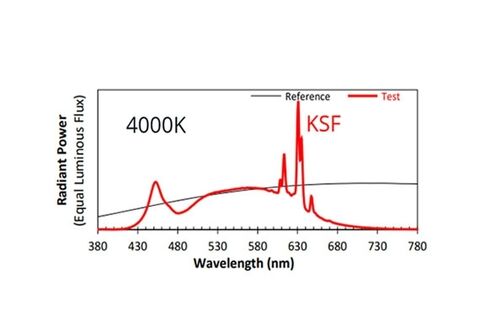

For traditional LED technology, higher CRI results in a lower efficacy. By replacing broadband red nitride phosphor with narrowband red Potassium Fluorosilicate (PFS or KSF) phosphor, the F90 LED products can achieve today’s CRI80 LED efficacy with a CRI of 90. Lighting customers can simply replace their existing LEDs in their lighting products with the new F90 LEDs for CRI90 conversion. Bridgelux’s new family of F90 Series LEDs delivers a CRI of at least 90 and R9 of at least 50. The F90 2835 0.2W LED has a lumen efficacy ranging from 170 lm/W to 210 lm/W to meet the DLC (Design Lights Consortium®) V5.1 Standard for different lighting products including T8 lamps, troffers, high-bay, linear ambient, and case lighting. The F90 2835 1W LED has a lumen efficacy ranging from 139 lm/W to 160 lm/W for indoor directional lamps and downlights for commercial lighting. F90 LED products also meet the DLC Premium Lumen maintenance technical requirements L90≥36,000 hours. F90 Series LEDs can be incorporated in virtually any luminaire (such as linear lamps, downlights, spotlights, high-bay) and can increase the vividness of strong red colors which is particularly desirable in retail applications.

Main Features

Features:

  • F90 performance is same or better than CRI80
  • Highest CRI90 efficacy up to 210 lm/W
  • Delivering a CRI of min 90 and R9 of min 50
  • Industry standard form factors and footprint
  • ANSI compliant color bins
  • DLC Premium Lumen maintenance L90≥36,000 hours
  • Broad product platform availability (SMDs and COBs)
Documents Tech question
F90 jpeg 0

Bridgelux F90 Series CRI90 LEDs for commercial lighting

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents
Schermafbeelding 2021 05 21 113551

Applications & Markets

  • 1 Lighting Illumination

    Lighting & Illumination

Technologies

  • Shutterstock 767486674

    LED light sources

Bridgelux

Bridgelux is a leading developer and manufacturer of lighting technologies and solutions that invites companies, industries and people to experience the power, possibility and financial potential of LED lighting.

Read more
Bridgelux Logo

Documents

  • DS SMD 2835 1 W 18 V 50m A CRI 90 BXFN XXG 21 H 18 C Data sheet Rev A 20210325
  • DS SMD 2835 1 W 9 V 100m A CRI 90 BXFN XXG 13 H 9 D Data sheet Rev A 20210430
  • DS SMD 2835 1 W 9 V 100m A CRI 90 BXFN XXG 13 H 9 C Data sheet Rev A 20210312
  • DS SMD 2835 0 2 W 3 V 65m A BXFN XXG 21 L 3 C4 Data sheet Rev A 20210430
  • DS SMD 2835 0 2 W 3 V 65m A BXFN XXG 11 L 37 Data sheet Rev A 20210316
  • DS SMD 2835 0 2 W 3 V 65m A BXFN XXG 11 L 3 C3 Data sheet Rev A 20210316
  • DS SMD 2835 0 2 W 3 V 65m A BXFN XXG 11 L 3 A Data sheet Rev A 20210316
