Box PC from rapid implementation to semi-rugged system boost long battery life, quick response

20/01/2023

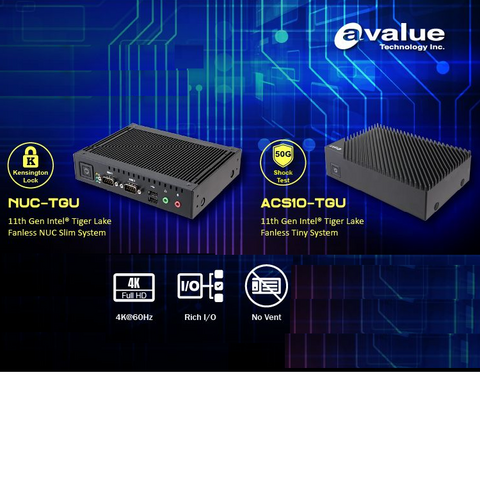

Avalue released the semi-rugged NUC-TGU and fast-to-implement ACS10-TGU box PCs. Both PCs are powered by Intel® 11th-Gen Tiger Lake UP3, which is specifically designed for IoT-related operations. High-performance CPU with Intel® Iris® Xe graphics card boosts performance speed by up to 2.95 times, and single-thread and multi-thread performances are increased by 23% and 19% respectively. The combined effect of the giant leap in computing performance, outstanding graphics chip/ media and graphics effect, and real-time low-latency processing, enables Avalue NUC-TGU and ACS10-TGU to accomplish critical tasks requiring uninterrupted operation and powerful simulation and analysis functions, accelerating businesses’ push into AI visual analysis, deep learning, smart retail, precision healthcare, industrial automation and smart city.

Extremely low operating and standby power, high-speed connection, and better big data analysis and process capability, are critical factors for success in the IoT market. Lining up a full spectrum of IoT products from PCBs, box PC to touchscreen system, Avalue satisfies the requirements of new-generation industrial IoT and edge computing.

Main Features

NUC-TGU:

  • Intel 11th Tiger Lake-U Processor
  • Intel Iris® Xe Graphics
  • Single Memory Socket, Max. Up to 32GB DDR4 3200
  • Dual Display, HDMI 2.0b
  • Dual Intel Gigabit Ethernet, 2.5GbE, 1GbE
  • Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD, I/O module
  • Supports iAMT, Kensington Lock
  • Default dTPM 2.0, Mounting Kit


ACS10-TGU:

  • 11thGen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
  • Intel® Iris® Xe/ UHD Graphics Engine
  • 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
  • 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
  • 2-COM Port (RS-232/422/485 & RS-232)
  • 2-Audio Jack (Line-Out & Mic-In)
  • 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
  • 2-Expansion Slot (M.2 Key-E, Key-B)
  • 6-USB Port (3-USB 3.2 & 3-USB 2.0)
  • CE, FCC Class A, UKCA
